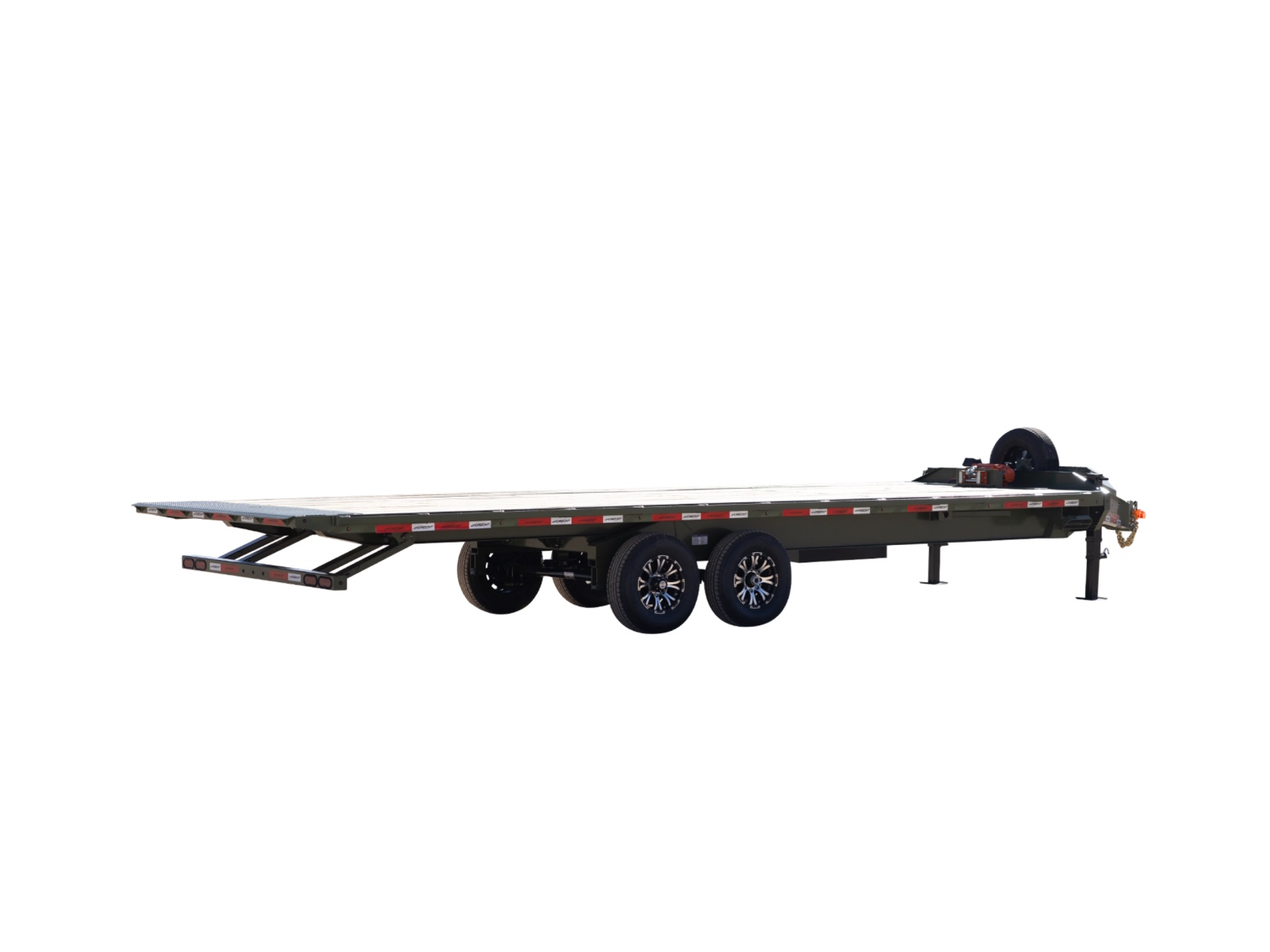

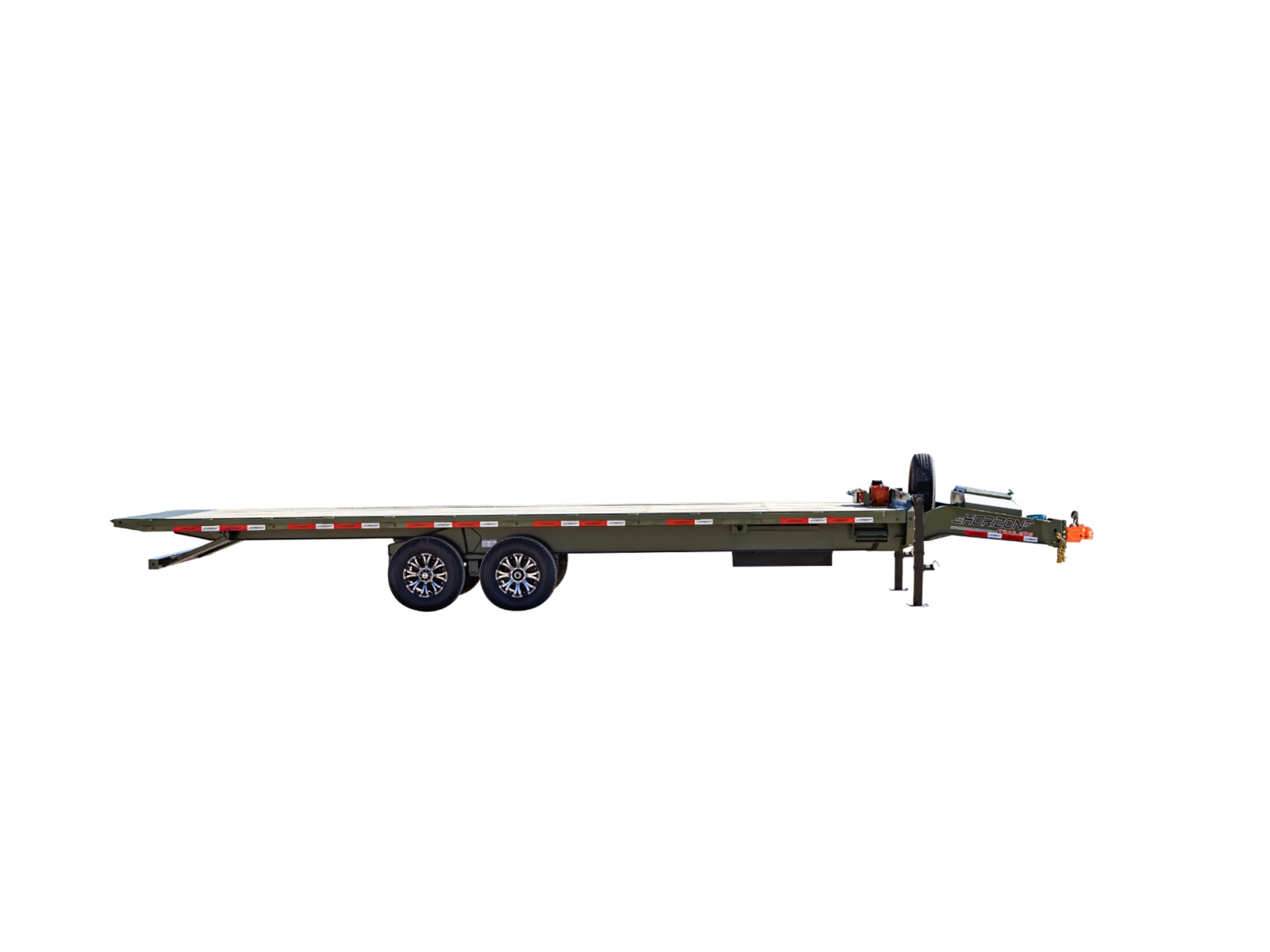

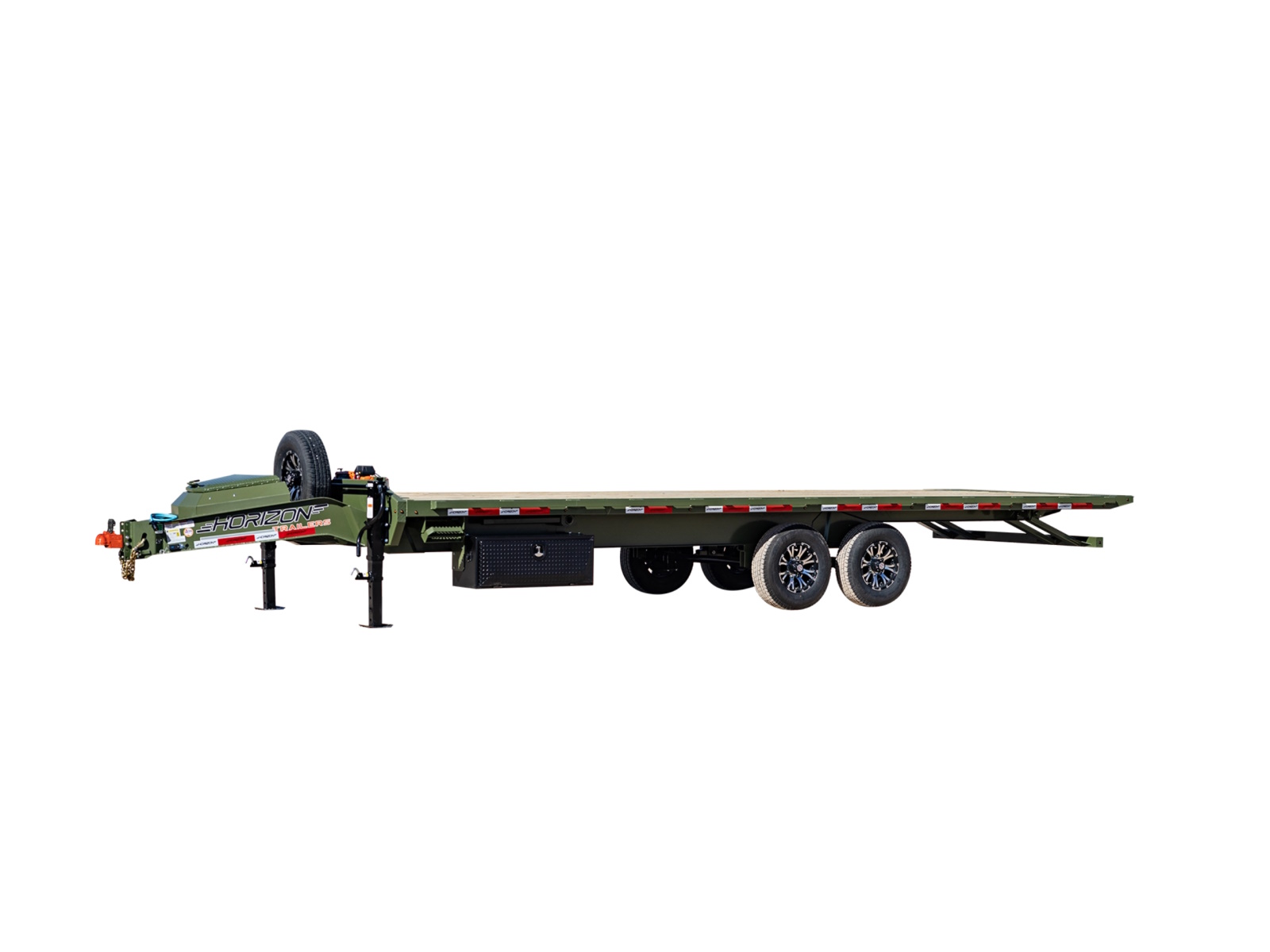

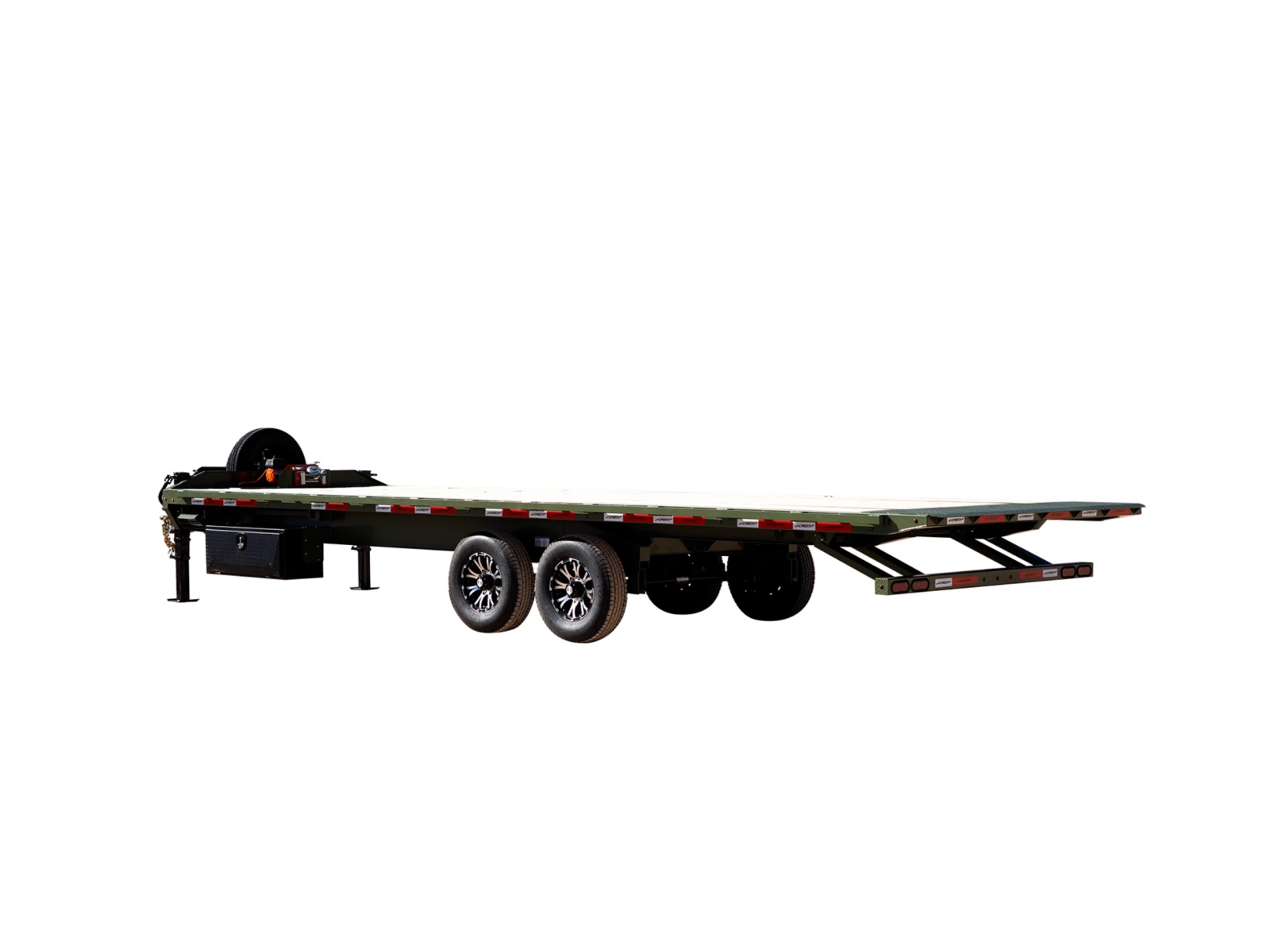

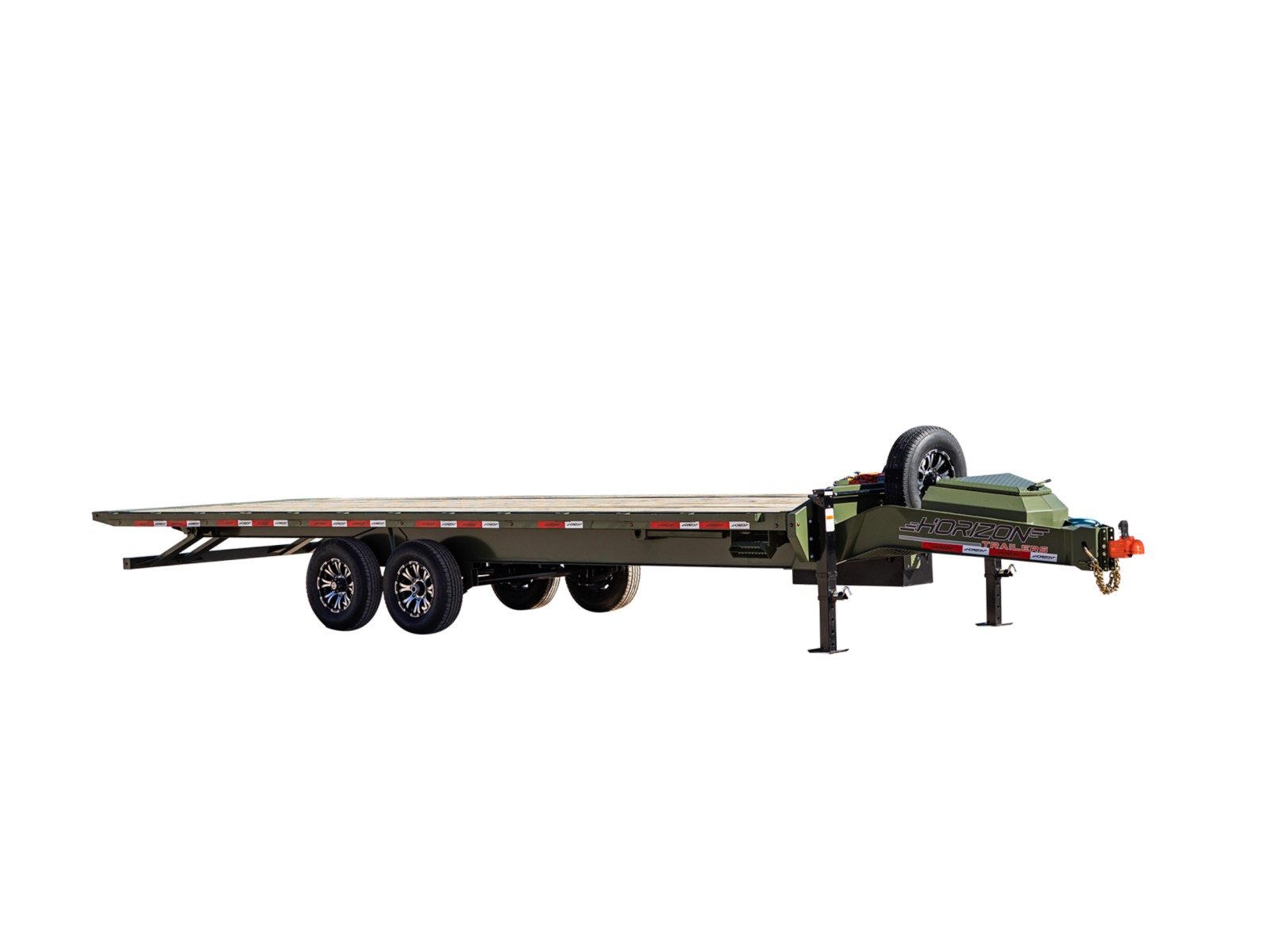

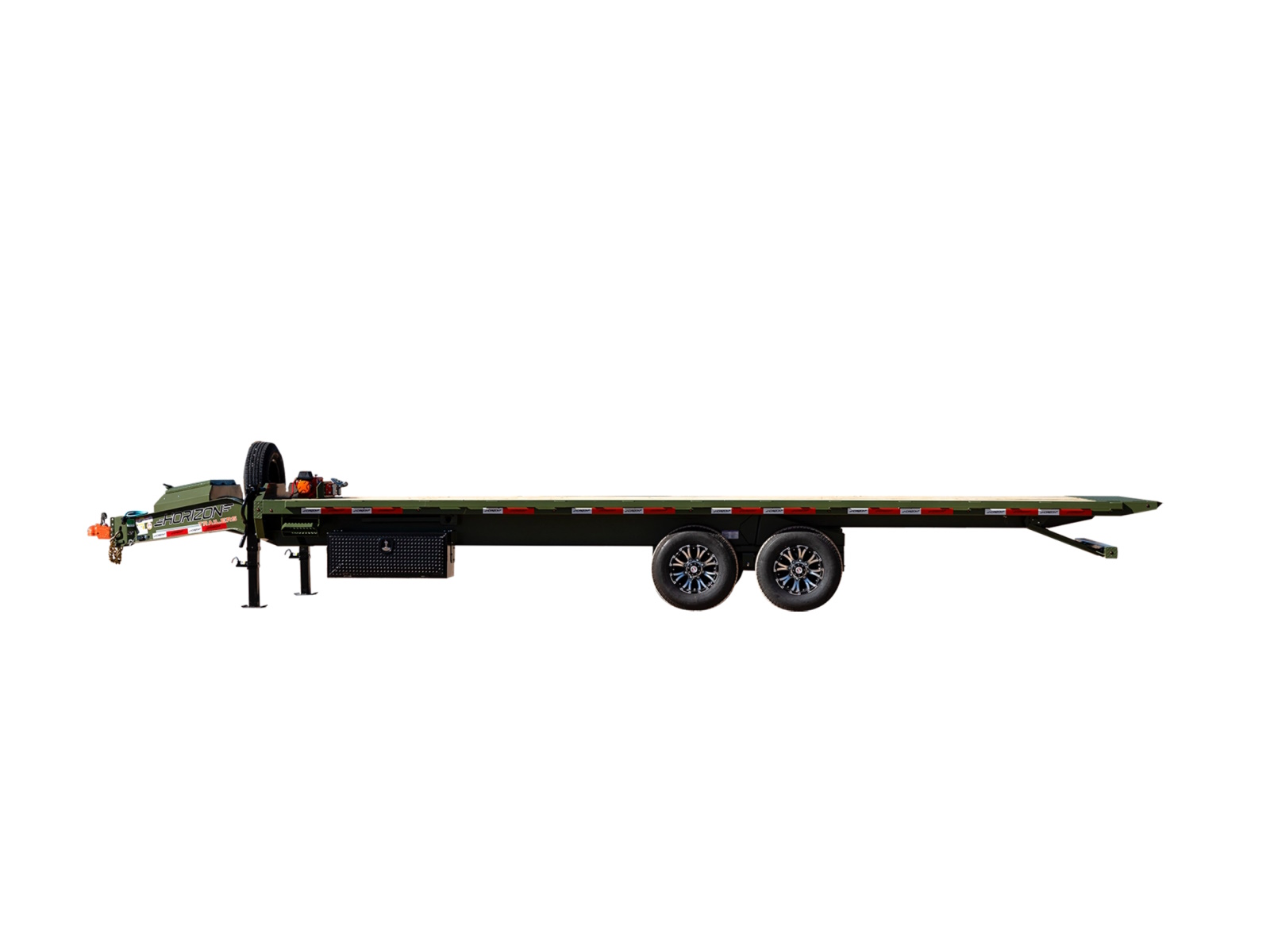

2026 Horizon FFT 17K 102 in BP 24 ft
Discover the FFT 17K 102" Full Tilt Flatdeck Trailer, designed for unmatched performance and durability. Featuring a 12" I-Beam frame, hydraulic tilt system, and a massive 17,900 lbs GVWR, this gooseneck trailer is perfect for hauling heavy loads. Available in multiple lengths and vibrant colors, it combines strength and style for every job.
Heavy-Duty Design for Any Load
UNMATCHED PERFORMANCE
Experience the power of the FFT 17K 102" Full Tilt Flatdeck Trailer. Engineered with a 12" I-Beam mainframe, hydraulic lift system, and a GVWR of 17,000 lbs, it offers peak performance for heavy-duty tasks. Customize with lengths from 22' to 28' and choose from 12 vibrant colors to make it uniquely yours.
Built for Strength and Convenience
ULTIMATE VERSATILITY
The FFT 17K Trailer adapts to your toughest challenges. With a full-tilt deck, lockable toolbox, and radial tires on 8k axles, it provides reliability and ease of use. Its 102" width and multiple length options ensure you have the perfect fit for every job, backed by industry-leading warranties.
Customization Options That Impress
STAND OUT IN STYLE
Choose from 13 stunning colors, including Military Green and Flame Orange, to match your brand or preference. With premium finishes like a zinc primer undercoat and powder-coating, your FFT 17K Trailer stays sharp and resilient. Elevate your fleet with a trailer that delivers both functionality and aesthetic appeal.
Features may include:
Highlights
- 12" I-Beam (16 lbs/ft)
- Neckboss 12" Engineered I-Beam
- Diamond Mesh Wire Floor Storage

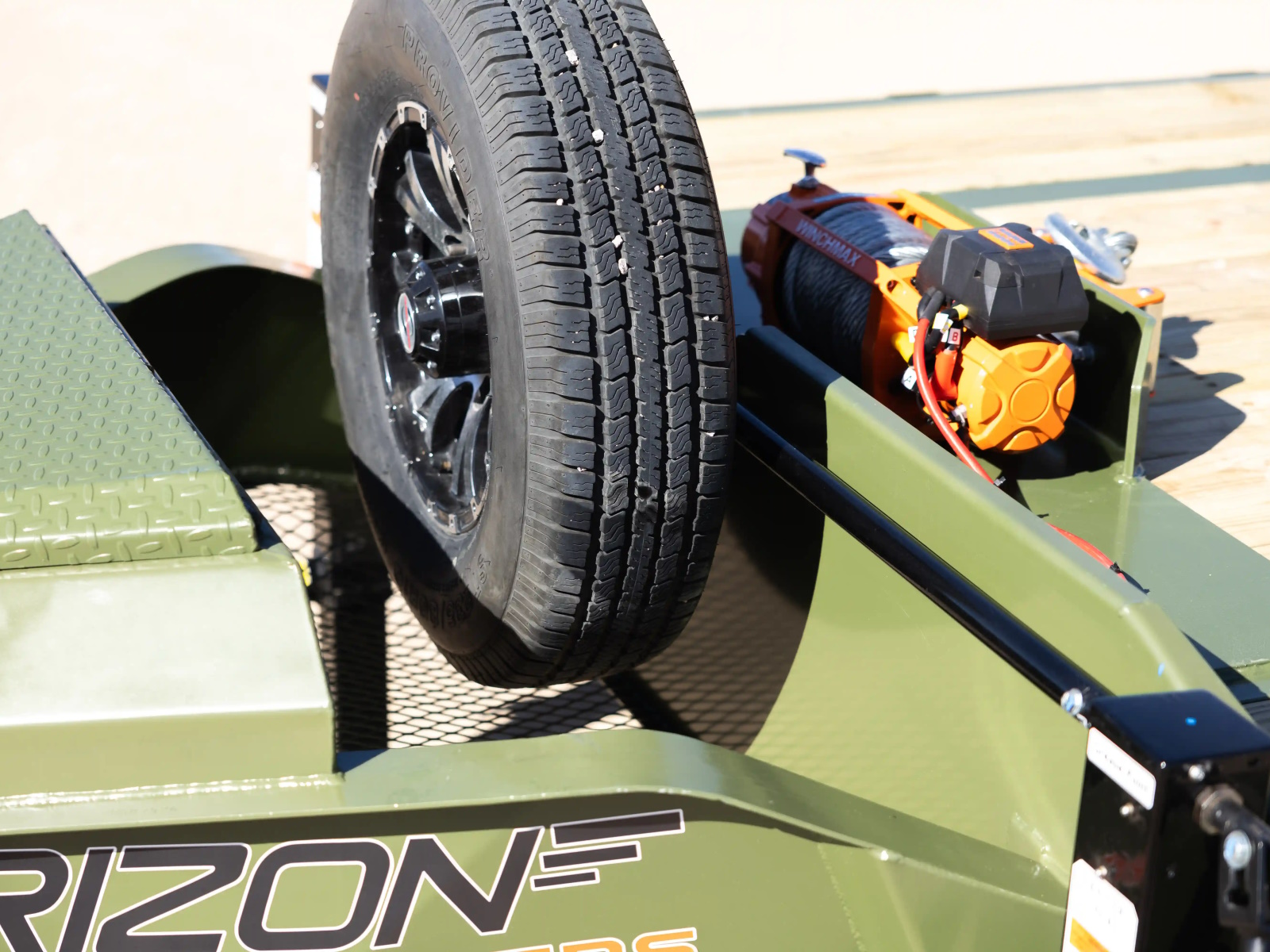

- Weld On Spare Tire Mount
- 2" X 5" X 11ga. TUBING BED FRAME
- SLIDE IN SIDE STEP ON BOTH SIDES

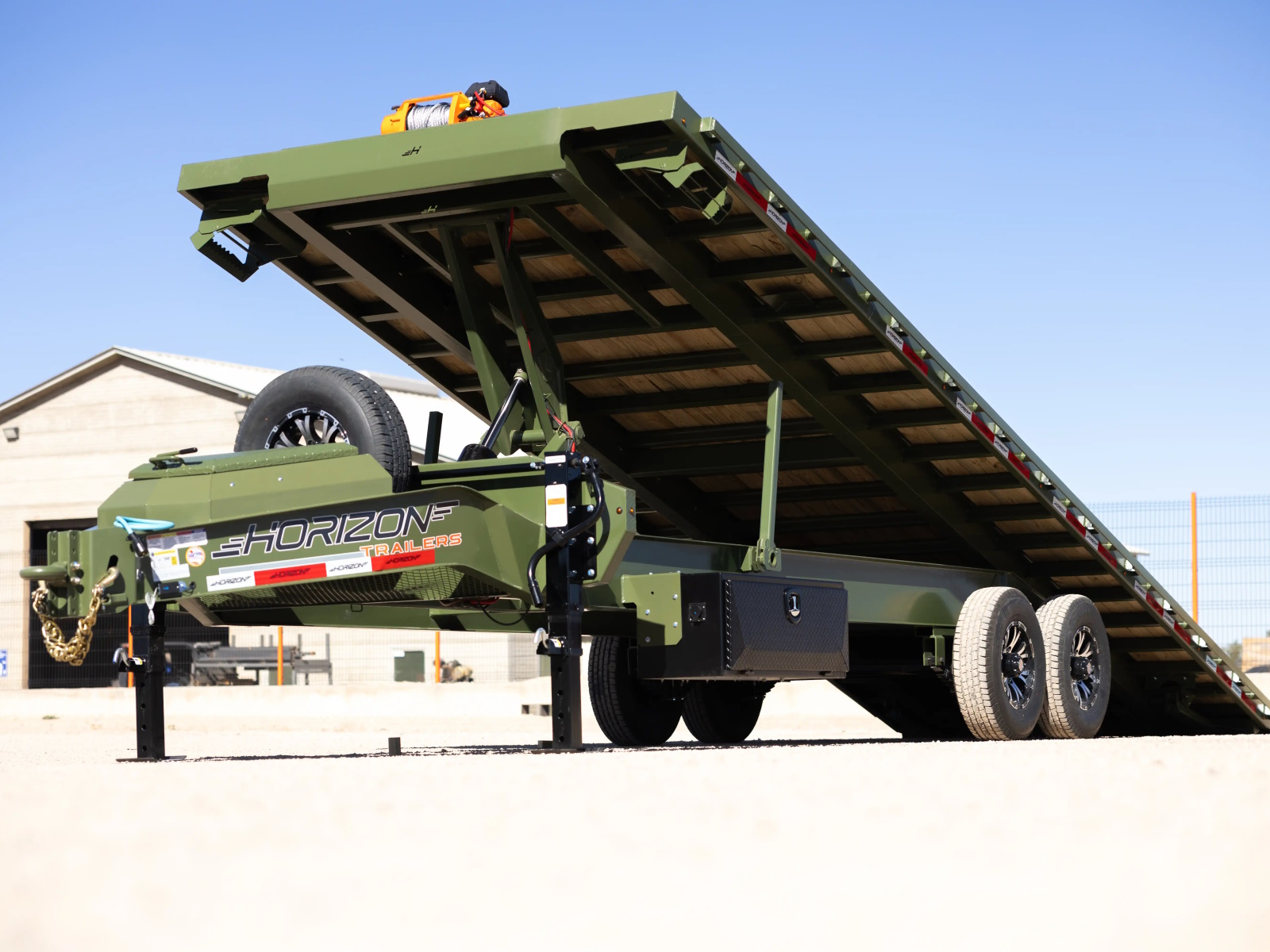

- Full deck tilt
- 20,000 lbs Lifting Capacity
Options
Base Model
- FFT2BP22102-17.9KFFT BP 22' x 102" 17.9K Tandem Axle Full Tilt Flatdeck Trailer
- FFT2BP24102-17.9KFFT BP 24' x 102" 17.9K Tandem Axle Full Tilt Flatdeck Trailer
- FFT2BP26102-17.9KFFT BP 26' x 102" 17.9K Tandem Axle Full Tilt Flatdeck Trailer
- FFT2BP28102-17.9KFFT BP 28' x 102" 17.9K Tandem Axle Full Tilt Flatdeck Trailer
Tongue
- FFT-11012k Ram 2 Speed Jacks$273.00 (USD)
- FFT-11112k Hydraulic Jacks$2,665.00 (USD)
- FFT-213Mega Lockable Toolbox$273.00 (USD)
Chassis
- FFT-610I-Beam Bridge Frame Upgrade$16.90 (USD) per linear ft

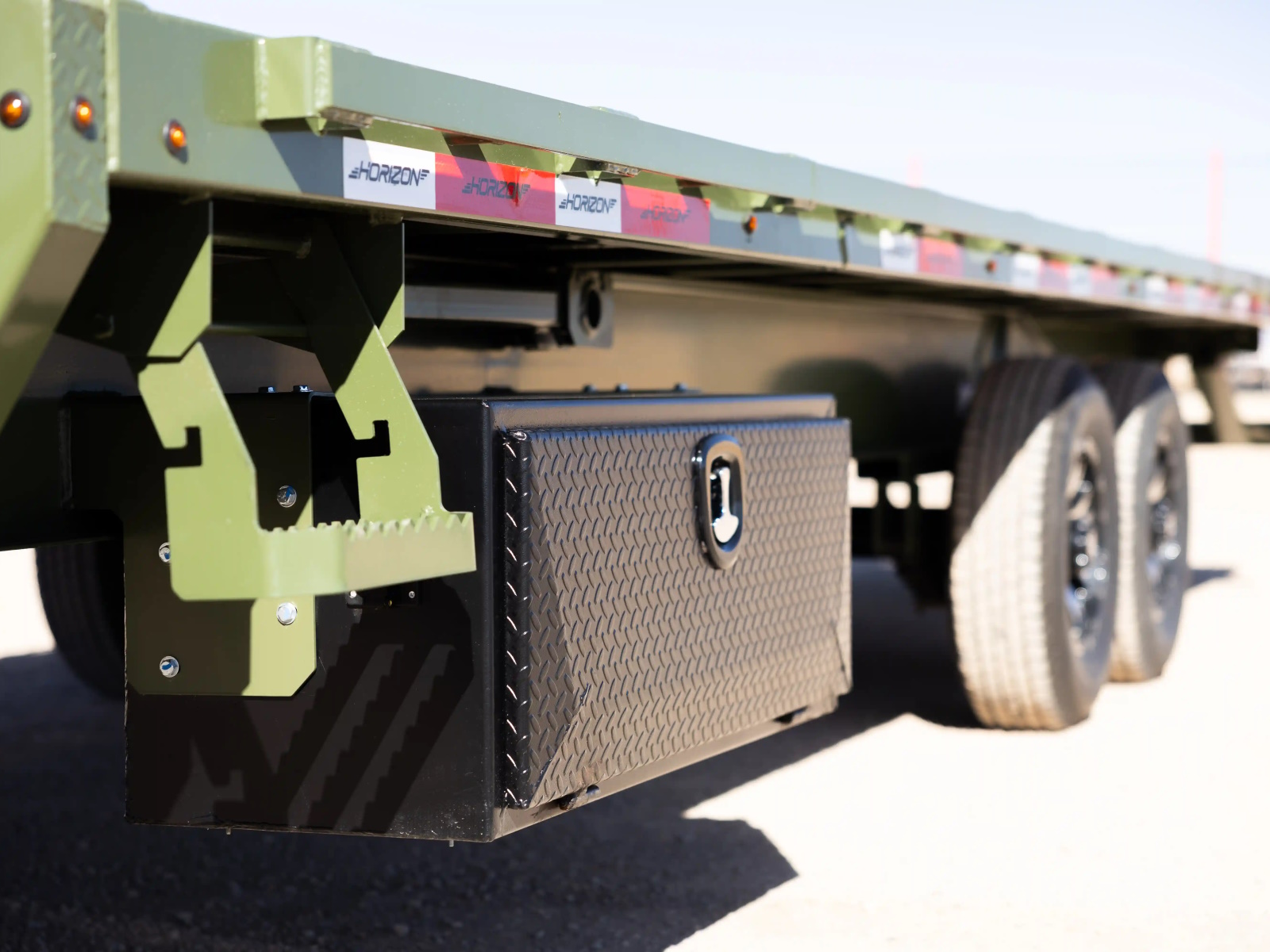

- FFT-20320' - 44' Deck 1 - Side Mount Undercarriage Toolbox (44"L x 17"W x 14"H)$481.00 (USD)
- FFT-21420' - 44' Deck 2 - Side Mount Undercarriage Toolboxes (44"L x 17"W x 14"H)$955.50 (USD)
- FFT-2041 - Side Mount Undercarriage Dunnage Rack (44"L x 22"W x 14"H)$481.00 (USD)
- FFT-2181 - Side Mount Undercarriage Dunnage Rack (9'L x 22"W x 14"H)$754.00 (USD)
Deck
- FFT-40212" Crossmember Spacing$15.60 (USD) per linear ft
- 506-004Deck Sides Blackwood "Classic" Rubber Infused Lumber$19.50 (USD) per linear ft
- 506-005Full Deck Blackwood "Classic" Rubber Infused Lumber$37.70 (USD) per linear ft
- FFT-411Ratchet Slide Track Left Side$20.80 (USD) per linear ft
- FFT-412Ratchet Slide Track Right Side$20.80 (USD) per linear ft
- 507-0076 - 4" Sliding Ratchets$572.00 (USD)
- 507-0088 - 4" Sliding Ratchets$767.00 (USD)
- 507-00910 - 4" Sliding Ratchets$955.50 (USD)
- 507-01012 - 4" Sliding Ratchets$1,144.00 (USD)
- 507-0116 - Weld On 4" Ratchets Right Side$572.00 (USD)
- 507-0128 - Weld On 4" Ratchets Right Side$767.00 (USD)
- 507-01310 - Weld On 4" Ratchets Right Side$955.50 (USD)
- 507-01412 - Weld On 4" Ratchets Right Side$1,144.00 (USD)
- 507-0044" x 30' Kinedyne Winch Strap with Flat Hook (5,400 lbs)$54.60 (USD) each
- 508-0014 Additional D-Rings Welded Across Deck (1/2" - 4,000 lbs)$84.50 (USD)
- 508-0026 Additional D-Rings Welded Across Deck (1/2" - 4,000 lbs)$123.50 (USD)
- 508-0038 Additional D-Rings Welded Across Deck (1/2" - 4,000 lbs)$162.50 (USD)
Lift System
- Lift system
- 509-020Tuff Wireless 4 Button Remote (Hoist - Winch)$858.00 (USD)
- 509-017Tuff Wireless 2 Button Remote (Hoist - Hydraulic Jacks)$858.00 (USD)
- 8 button remote option*6 buttons in use only*
- 509-026Tuff Wireless 8 Button Remote (Hoist - Hydraulic Jacks - Winch)$1,254.50 (USD)

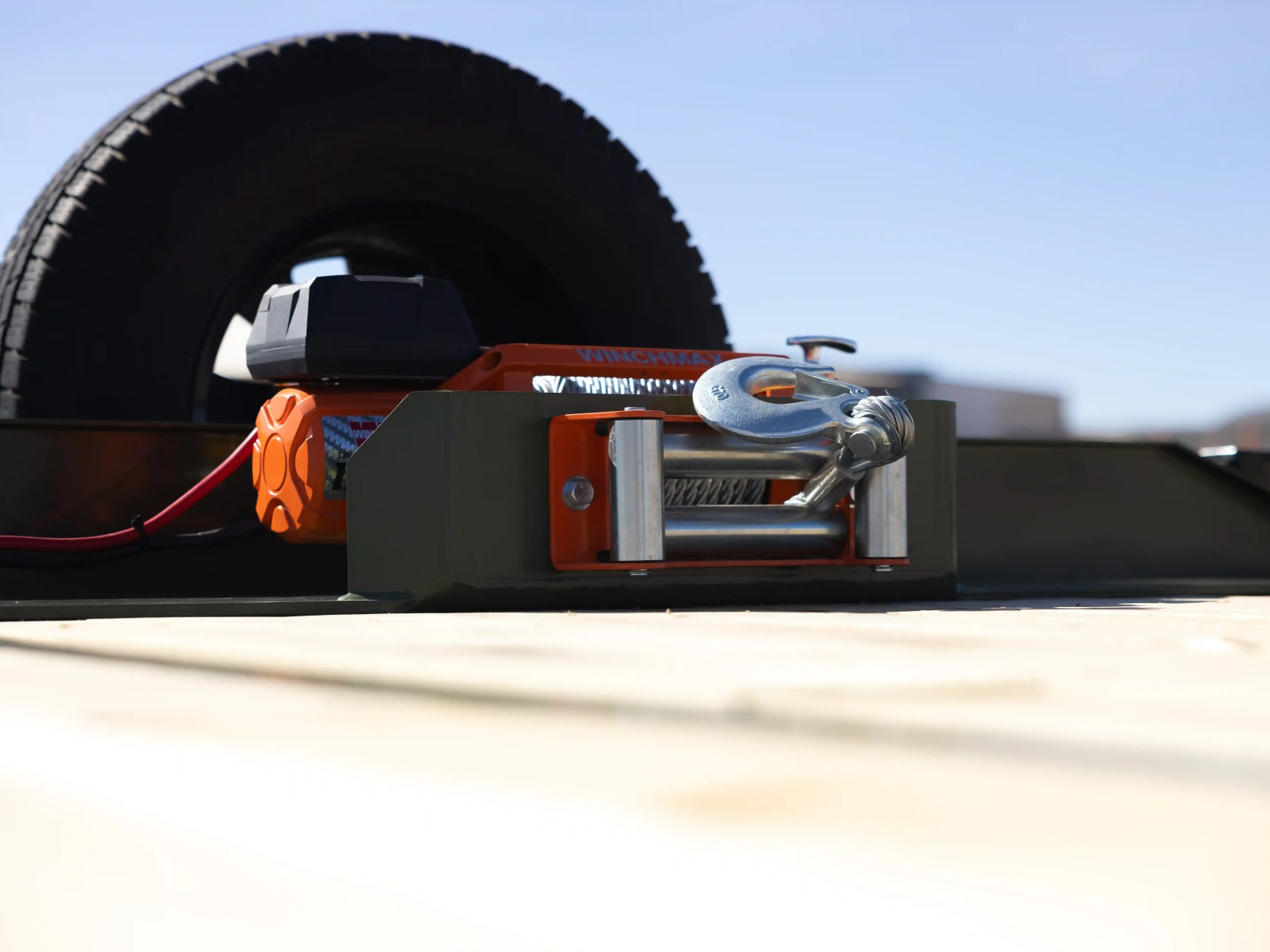

- 504-01213.5k Steel Cable Winchmax Winch$1,774.50 (USD)
- 504-01313.5k Synthetic Rope Winchmax Winch$2,047.50 (USD)
- 504-01417.5k Steel Cable Winchmax Winch$2,255.50 (USD)
- 504-01517.5k Synthetic Rope Winchmax Winch$2,938.00 (USD)
Running Gear
- Tire upgrade options
- 501-0054 - ST235/75R17.5 18 Ply Tires Super Singles (6,005 lbs)$819.00 (USD)
- Spare tire options
- 501-104ST235/85R16 14 Ply Tire Single (4,400 lbs)$240.50 (USD)
- 501-107ST235/75R17.5 18 Ply Tire Super Single (6,005 lbs)$318.50 (USD)
Electrical and Lighting
- 505-00110 Watt Solar Panel$481.00 (USD)
Finish
- FFT-81520ft & Up Zinc Primer Undercoat$1,365.00 (USD)
- FFT-804Toolbox Painted Black$208.00 (USD)
- FFT-821Side Mount Undercarriage Toolboxes Painted Black$273.00 (USD) per toolbox
- FFT-823Side Mount Undercarriage Dunnage Racks Painted Black$344.50 (USD) per rack
Info
Industry
Trailer
Make
Horizon
Model
FFT 17K 102 in BP
Trim
24 ft
Year
2026
MSRP
N/A
Category
Flatbed Trailer
Subcategory
Bumper Pull
Specs
Length
24 ft
GVWR
17,000 lbs | GAWR: 8,000 lbs
Width
Deck: 102 in
Frame
Deck Frame: 2 in x 5 in x 11ga. Tubing Bed Frame | Main Frame: 12 in I-Beam (16lbs/ft)
Suspension
Spring | Bolt Pattern: 8 On 6.5 in
Tires
Type: Radial Tires | Size: ST235/85R16 | Ply: 14 | Rating: 4,400 lbs
Tongue

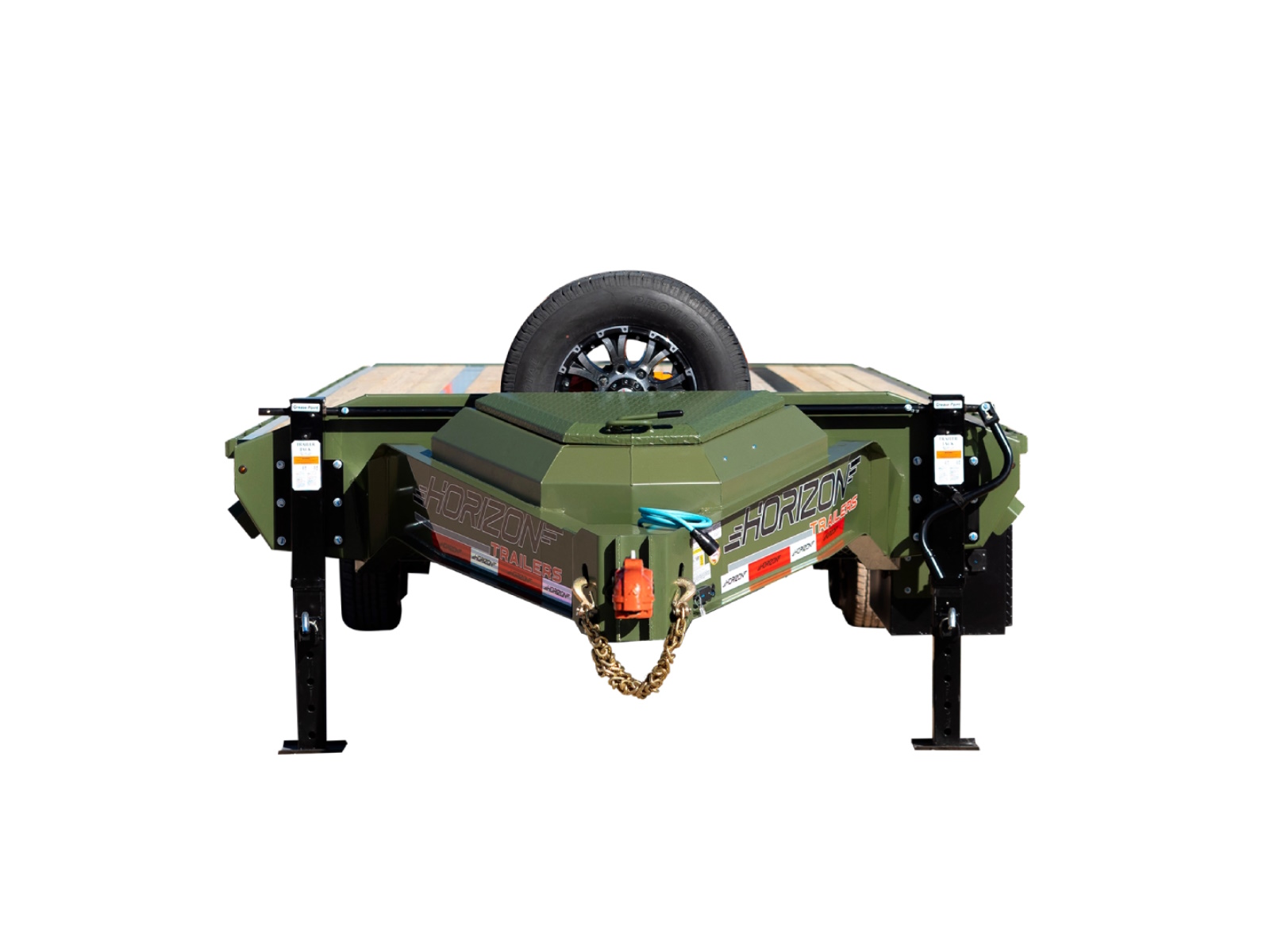

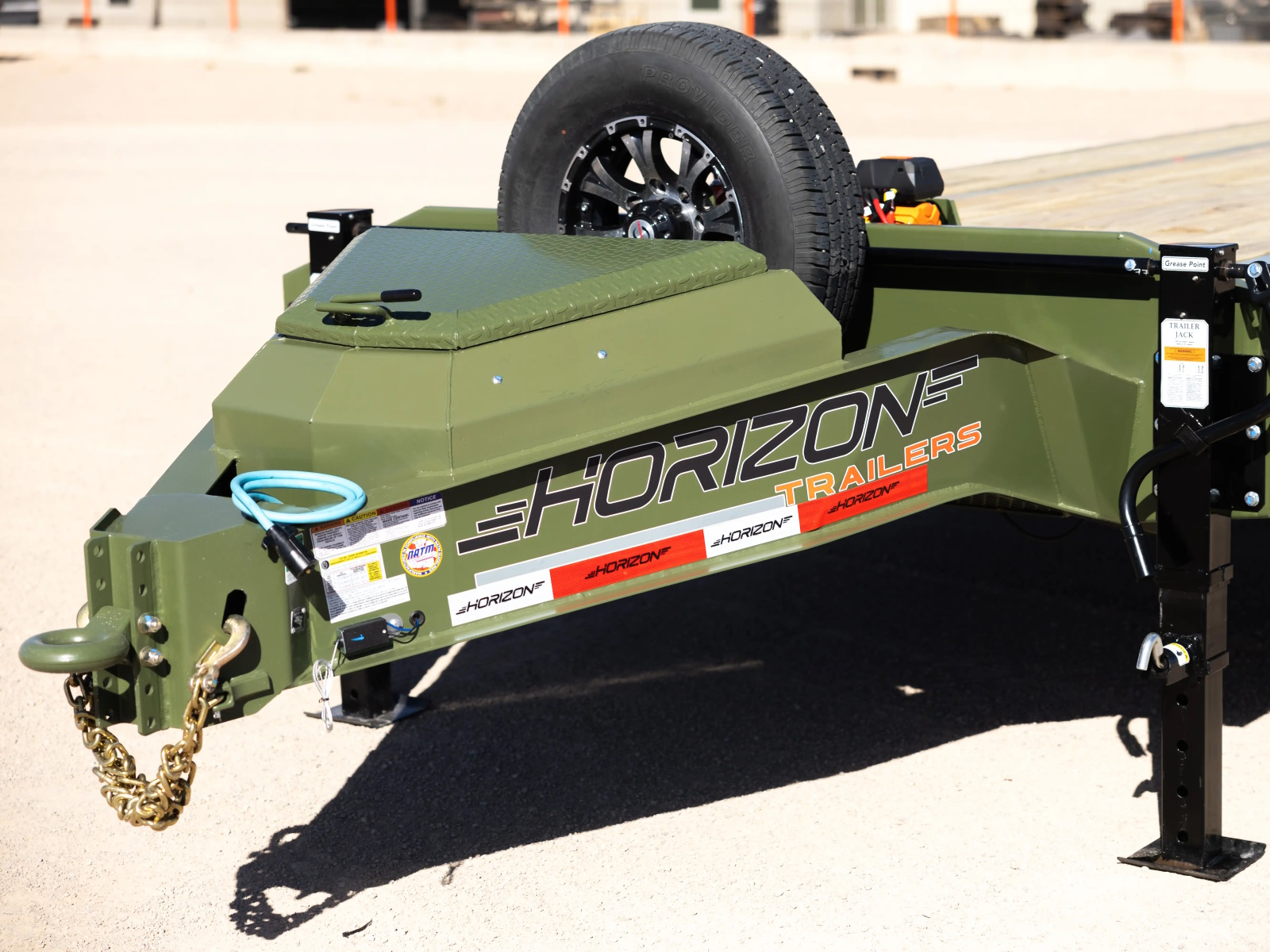

Type: Neckboss 10 in Engineered I-Beam | Length: 83 in | Spare: Weld On Spare Tire Mount
Finish
Paint Type: Powdercoat | Prep: Steel Grit Blasted | Colors: Military Green Desert Tan Flame Orange Midnight Black Spectra Yellow Blue Horizon Lime Green Ash Grey True Red Pearl White Cloud Grey Navy Blue
Notes
Safety: 3M Dot Compliant Reflective Tape | Hydraulics System: 2 Button Hydraulic - Power Up / Power Down | Pump: KTI 12V Hydraulic Pump | Controller: 14 in Control Cable | Wireless Controller: Tuff Wireless 2 Button Wireless Remote |Winch Plate: Winch Plate On Deck | Tilt: 18° | Left Side: Lockable Toolbox (Houses Batteries And Pump) | Front Jack: 2 Side Wind Spring Loaded Drop Jack Legs (12,000 lbs) | Toolbox: Diamond Mesh Wire Floor Storage
Cylinder

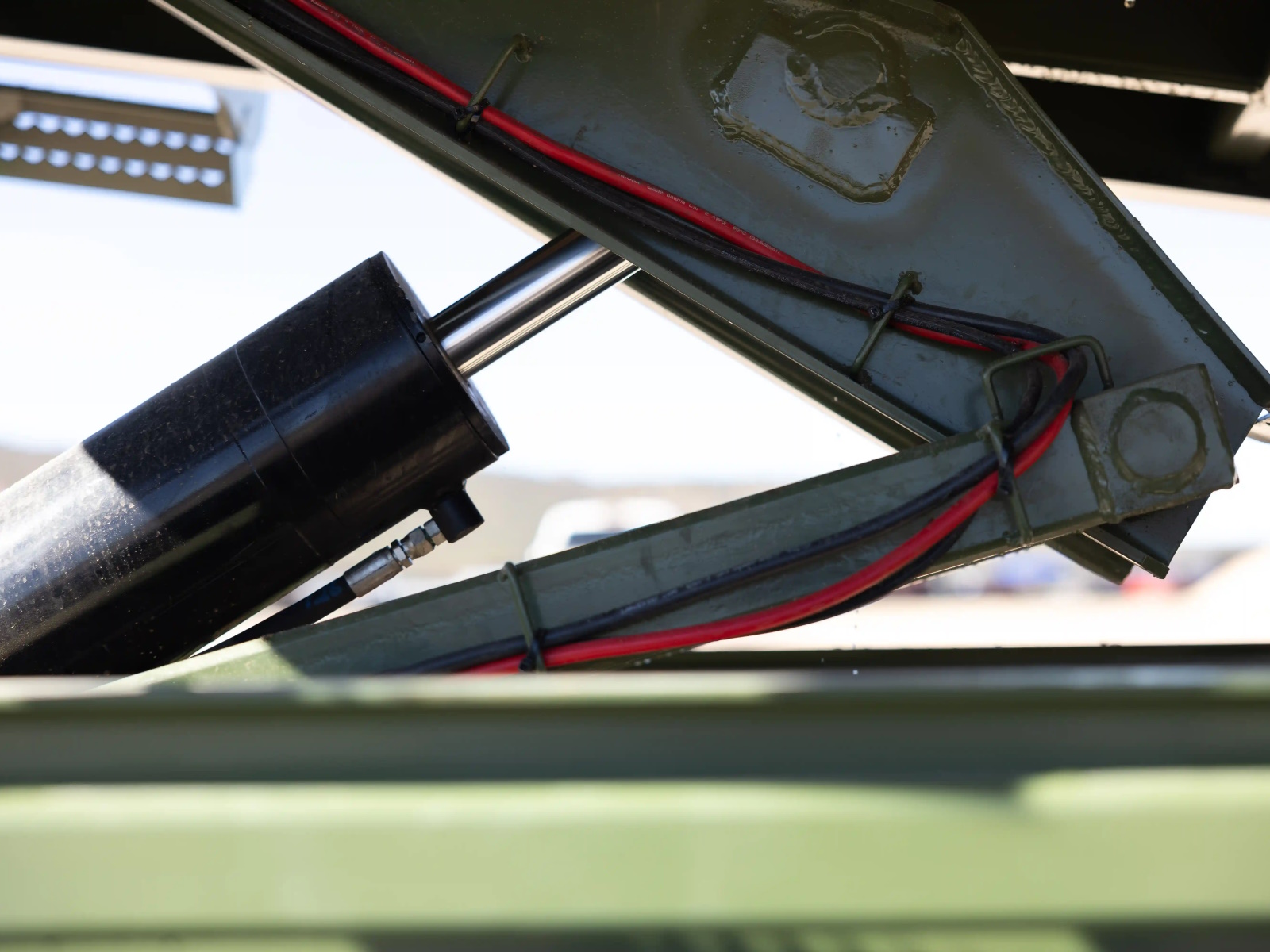

Lift Cylinder: Hoist w/ 6 in x 21 in Single Push Cylinder (20,000 lbs) | Lift Capacity: 20,000 lbs When Weight Distributed Across Length Of Deck
Battery
Battery: 2 - Interstate 27 Deep Cycle Batteries | Wiring Harness: All-Weather Wiring Harness (7-Way RV) | Frame Wiring: Double Insulated Wiring Harness
Top Rail
Rub Rail: 2 in x 3/8 in | Stake Pockets: 1,5/8 in x 3,5/8 in (ID) Stake Pockets (Spaced At 24 in) | Spools: 2 in x 10ga. Pipe Spools (Spaced At 24 in) | Sides: Slide In Side Step On Both Sides
Coupler
Adjustable Auto Latch 2-5/16 in BP Coupler (17,000 lbs)
Crossmembers
3 in Channel (3.50 lbs/ft) 16 in Spacing
Height
Deck: 36 in
Axles
2 Axles | Type: 8k Electric Brake Auto Adjust Oil Bath Spring Axles
Wheels
16 in Black Mod Wheels
Safety Chains
3/8 in Grade 70 Safety Chain w/Clevis Hook (2 each)

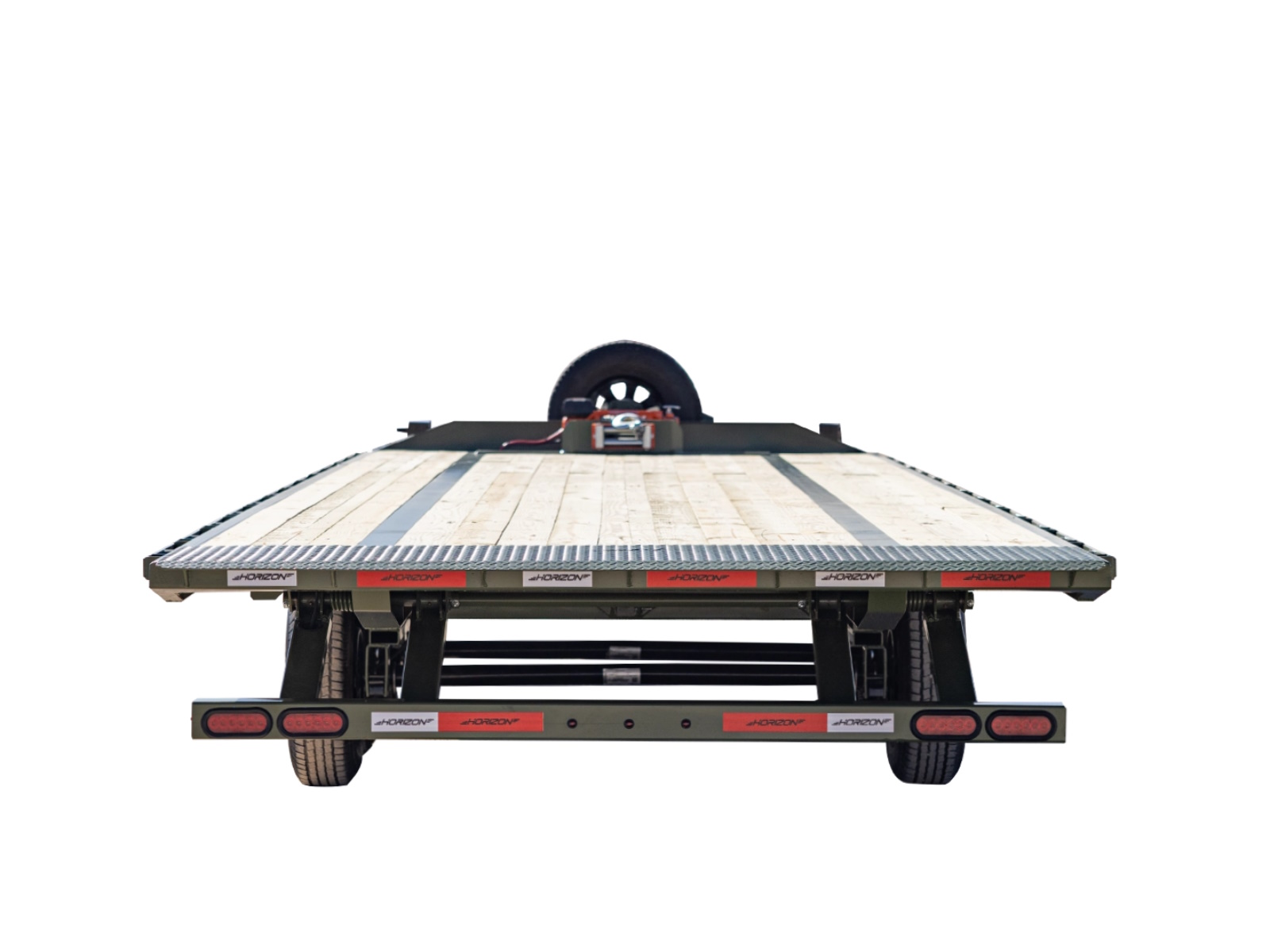

Floor
Pine Lumber Floor
Lights
DOT Approved Tecniq LED Lights
Warranty
Axle: 5 Year Spring Axle Warranty | Trailer: 3 Year Frame / 1 Year Parts Warranty
