2026 Horizon FTS 22.4K 102 in GN

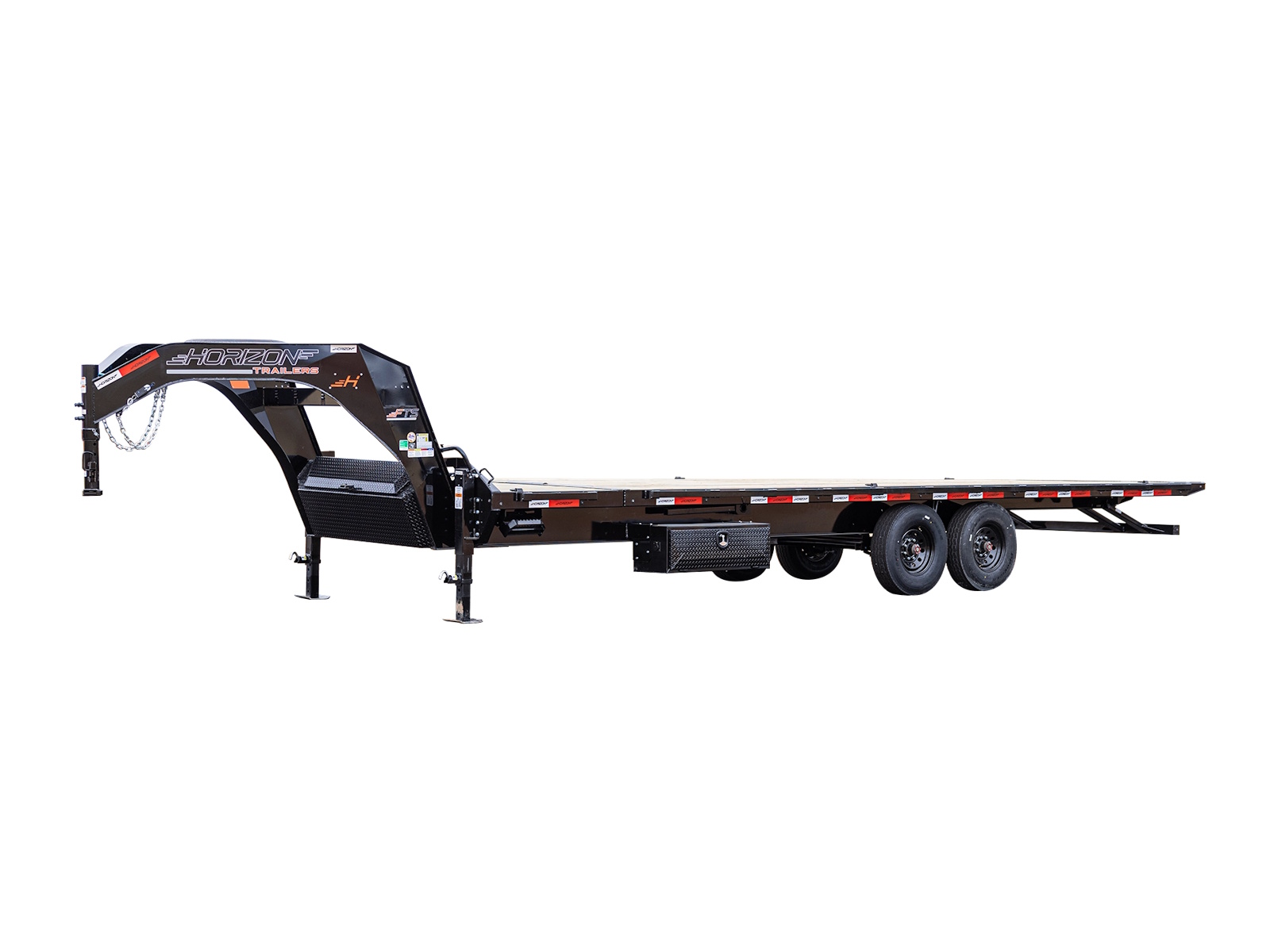

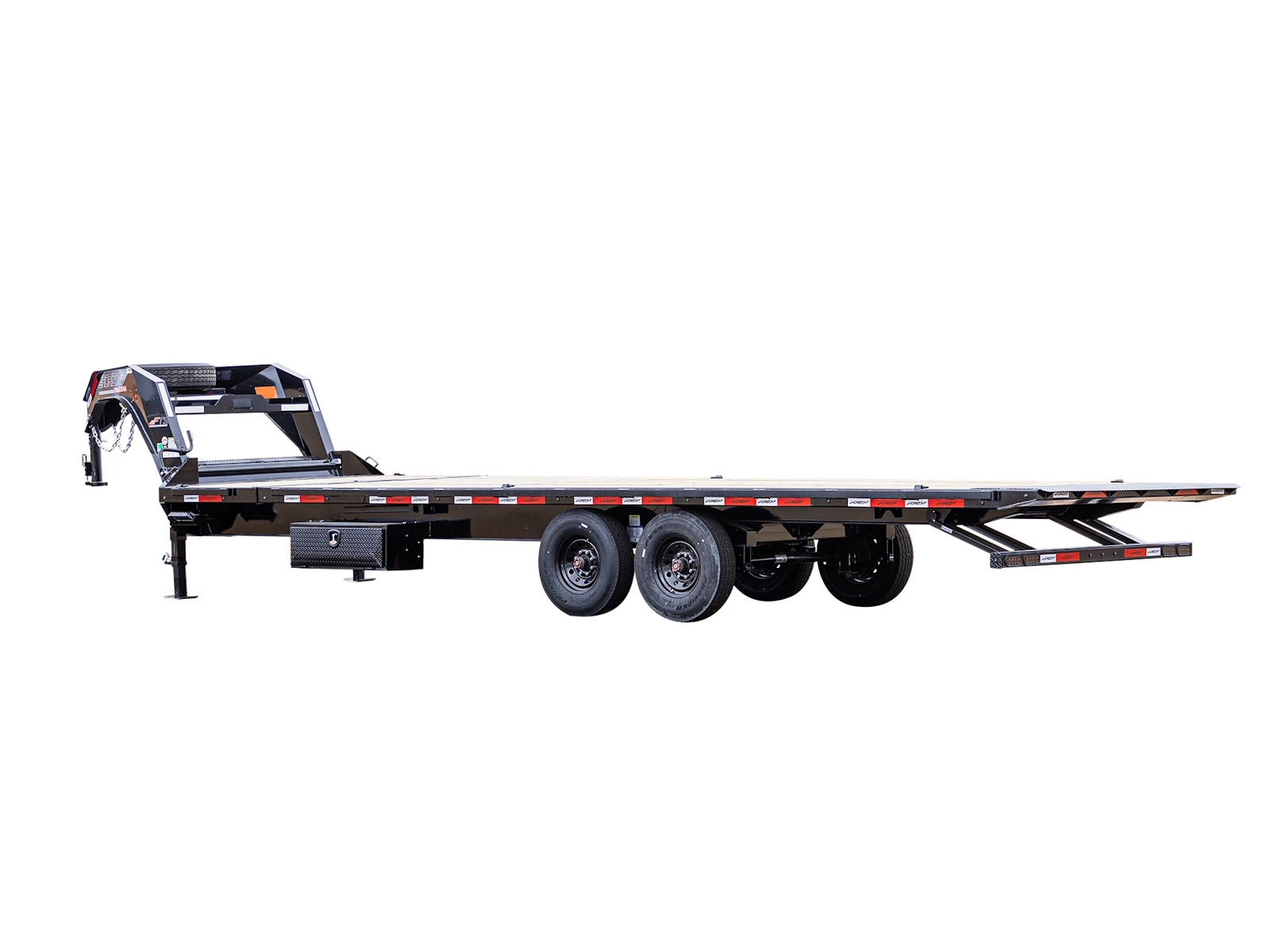

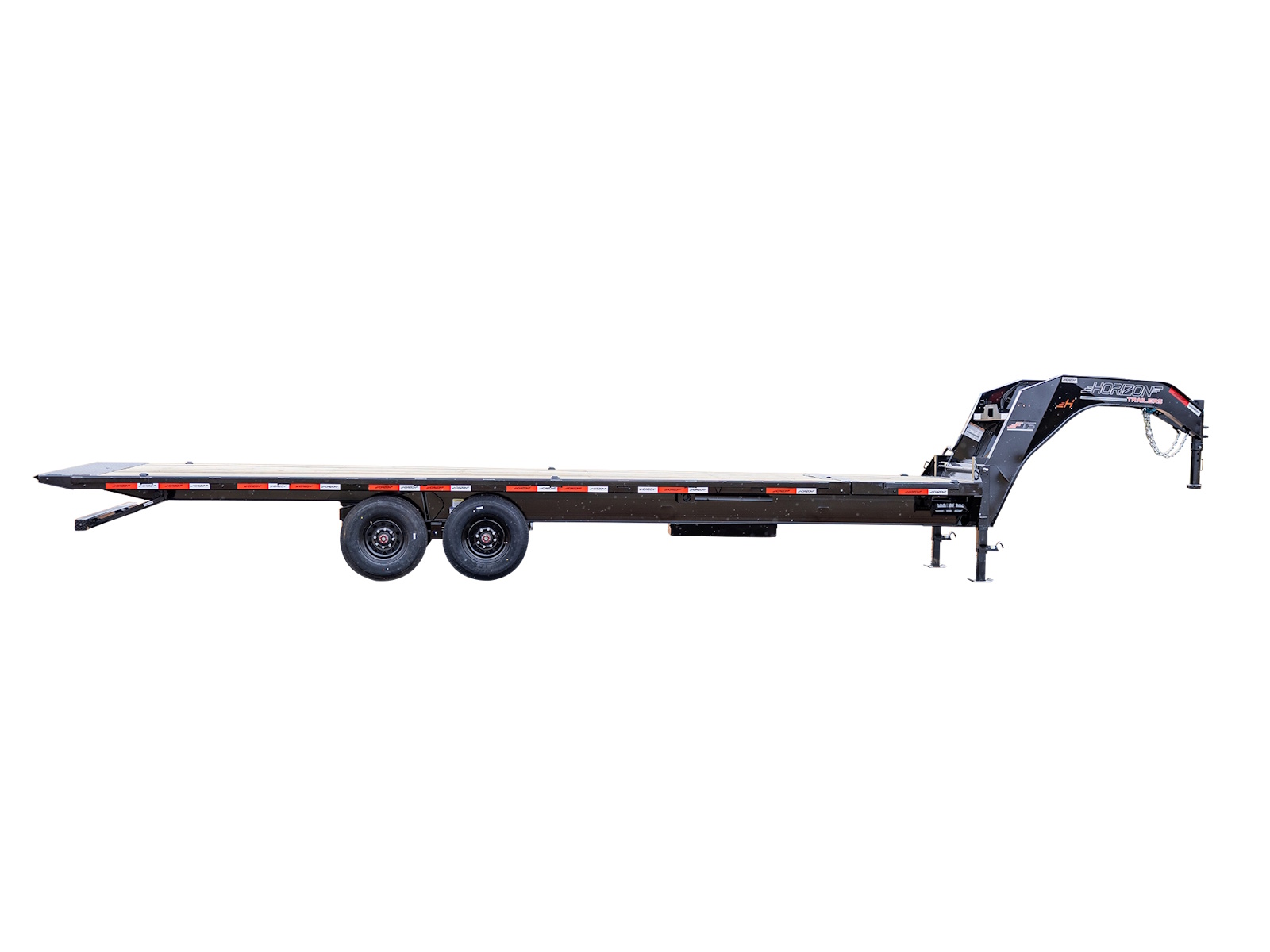

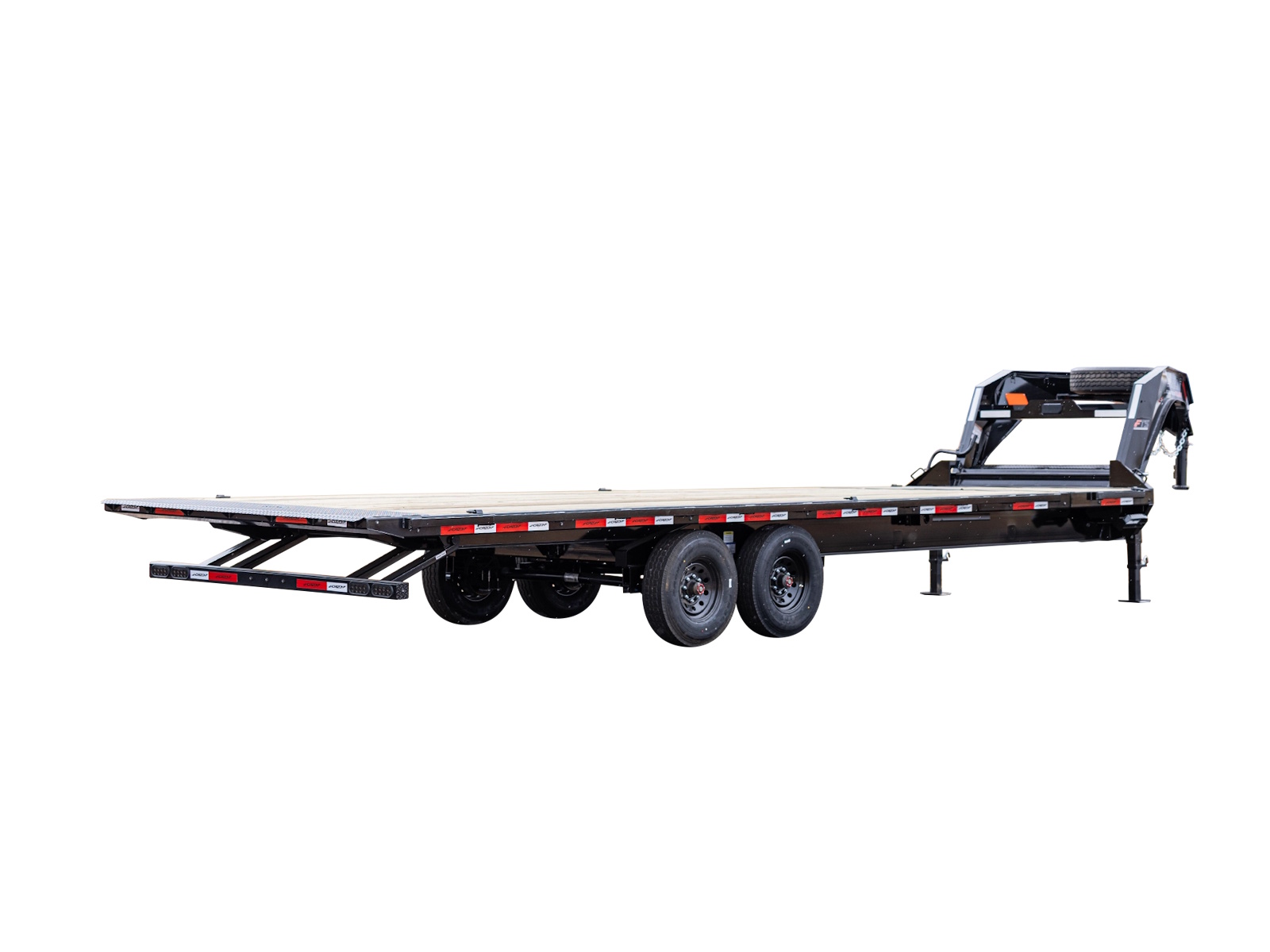

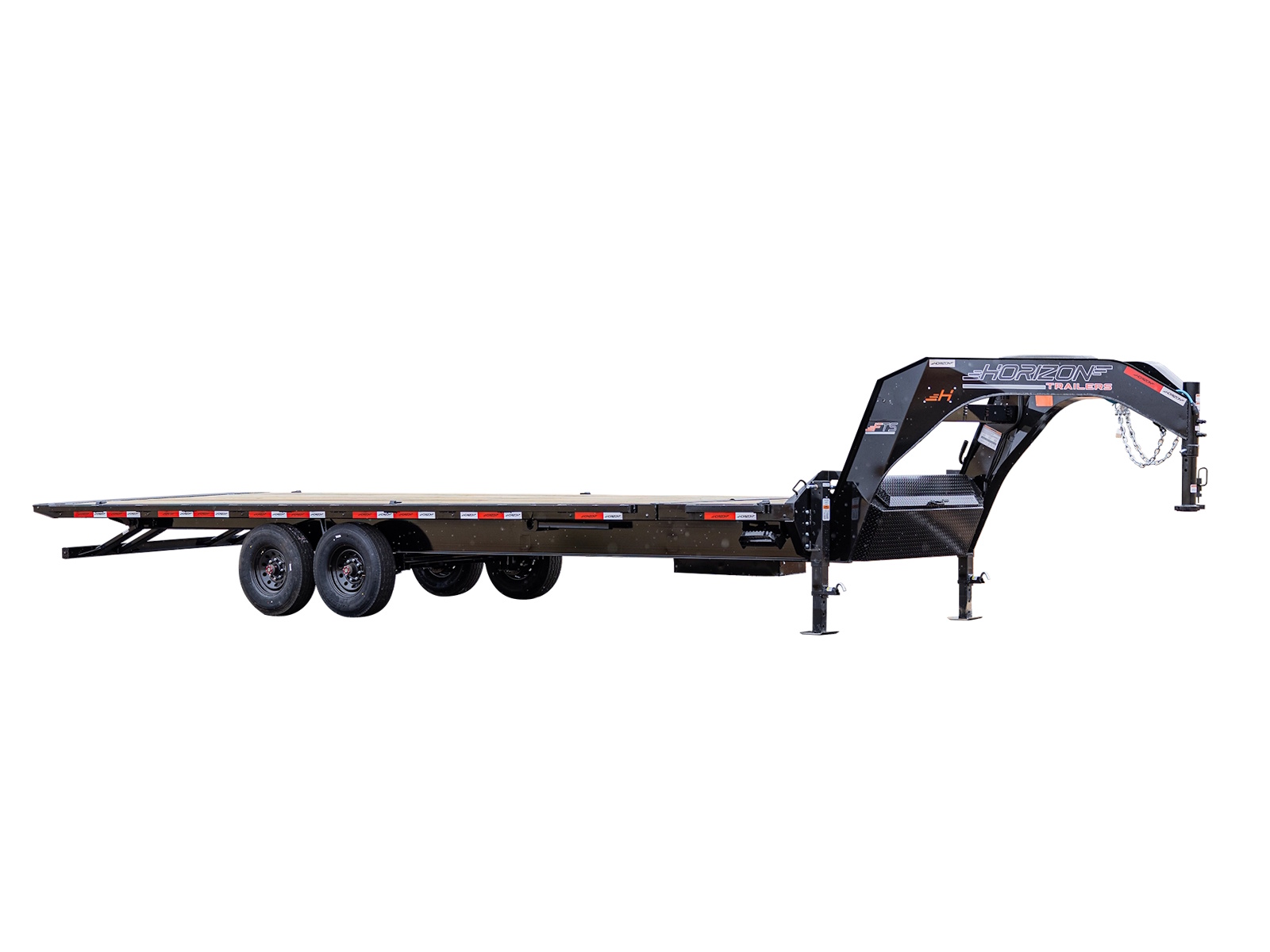

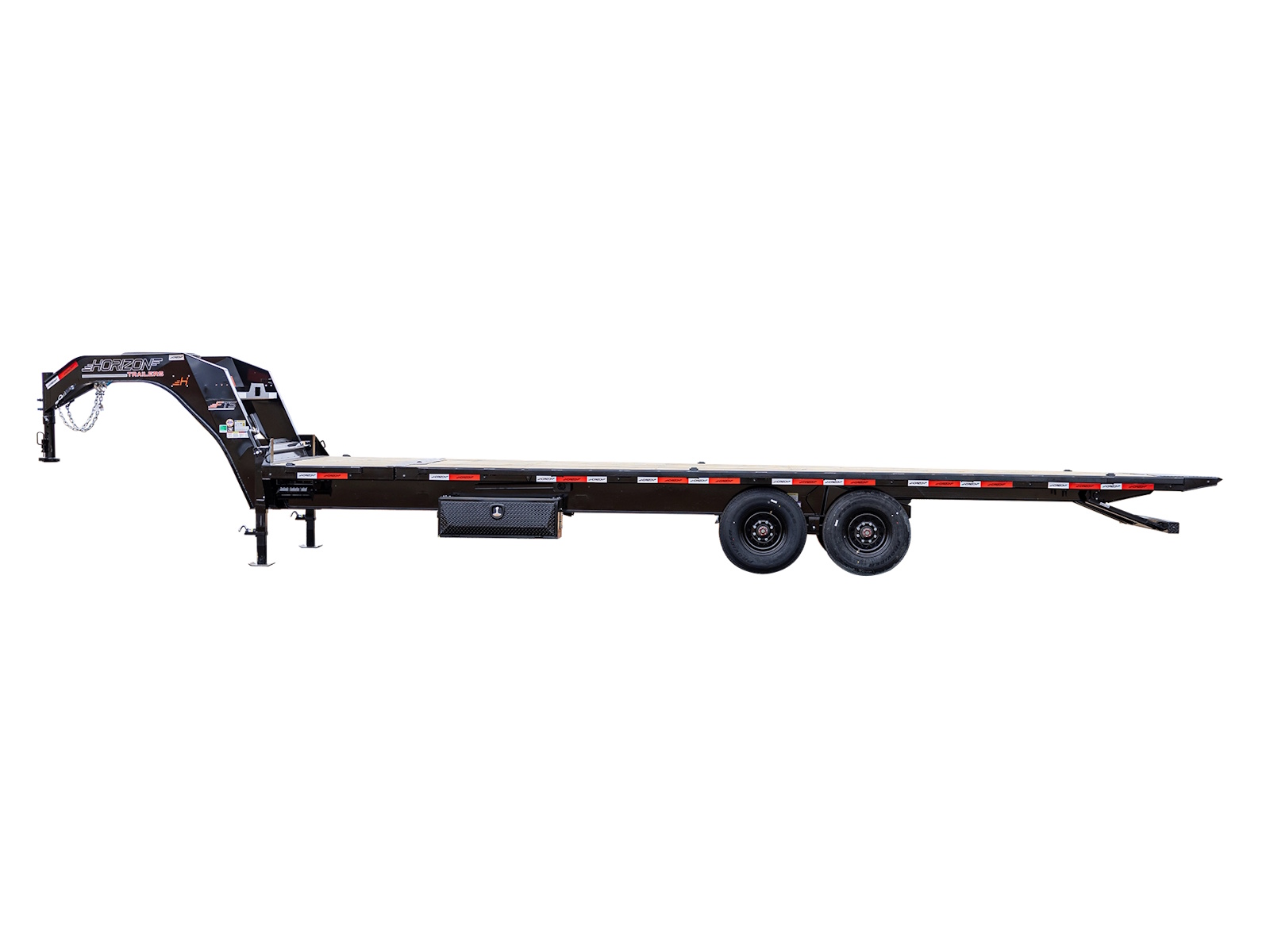

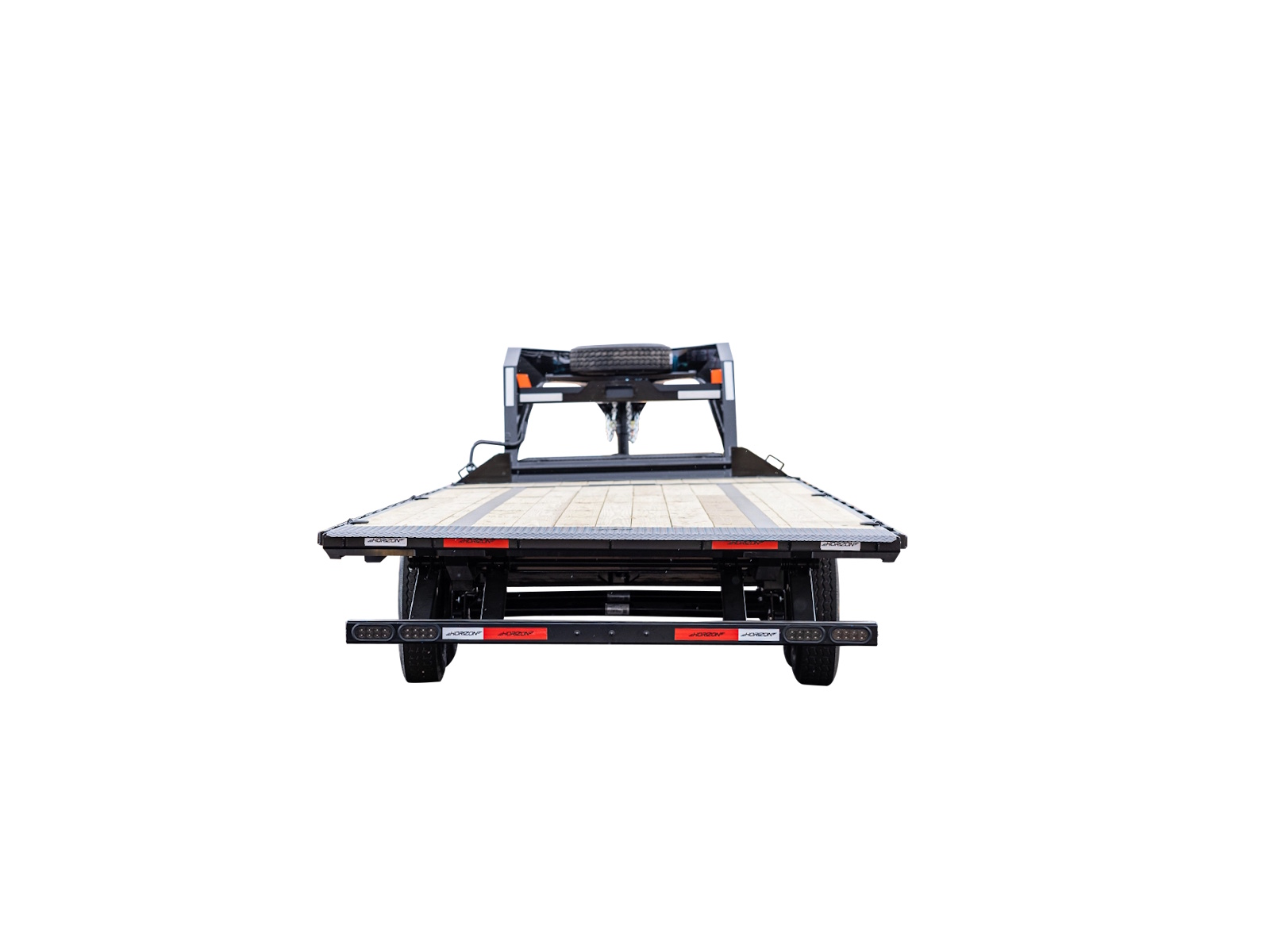

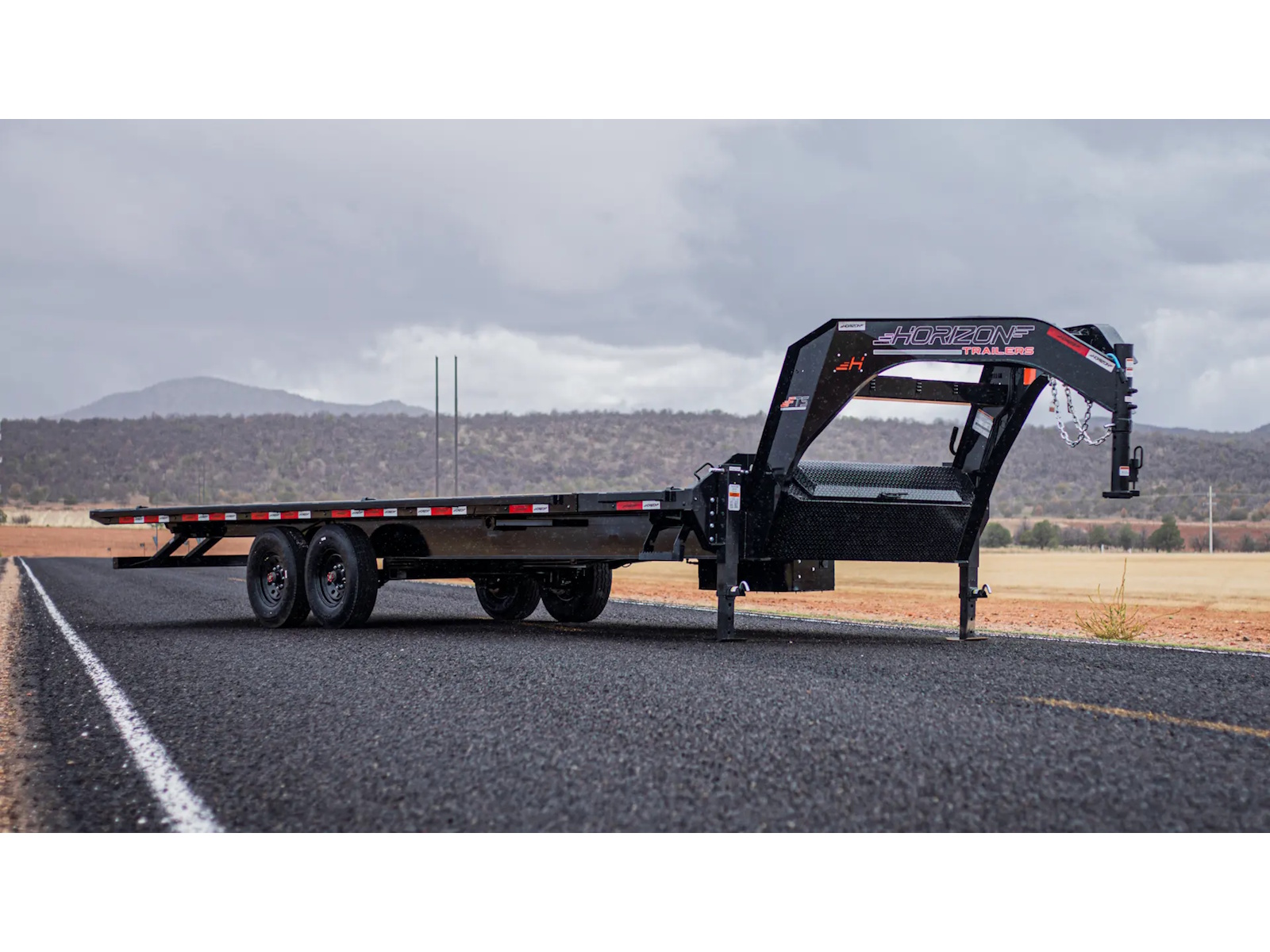

The FTS 22.4K 102" GN Split Tilt Flatdeck is a versatile trailer with a 28' deck length, 22,400 lbs GVWR, and a 10k axle rating. It features a split tilt deck, robust construction, and high-quality hydraulic lift systems, ideal for transporting heavy loads efficiently and safely.

BUILT FOR MAXIMUM STRENGTH AND SAFETY

HEAVY-DUTY DECK PERFORMANCE

The FTS 22.4K Split Tilt Flatdeck trailer offers high-performance with a 24' hydraulic tilt deck and a 36" deck height. Constructed with a 12" I-Beam frame and a Pine Lumber floor, it ensures durability and strength for long-term usage, making it perfect for transporting heavy cargo with ease.

POWERFUL HYDRAULICS FOR EASY LIFTING

CUSTOMIZABLE LIFT SYSTEM

Equipped with a KTI 12V hydraulic pump, the FTS 22.4K trailer provides a robust 20,000 lbs lift capacity when weight is distributed. The system includes both wired and wireless remote control options, offering excellent flexibility and ease of use for lifting and unloading, essential for heavy-duty operations.

RELIABLE AND SECURE TRANSPORTATION

EXCEPTIONAL SAFETY FEATURES

Safety is prioritized with 3/8" Grade 70 safety chains, DOT-approved Tecniq LED lights, and 3M reflective tape. The FTS 22.4K trailer also includes welded D-rings, a winch plate, and a Mega lockable toolbox, ensuring your cargo is securely fastened and easily accessible for added protection during transport.

Features May Include:

Standard Features

Highlights

• 12" I-Beam (19 Lbs/Ft)
• Neckboss 10" Engineered I-Beam
• Mega Lockable Toolbox
• Weld On Spare Tire Mount
• 2" X 5" X 11Ga. Tubing Bed Frame
• Slide In Side Step On Both Sides
• 24' Tilt Deck

Trailer Specs
Dimensions

• Available Lengths: 28'
• Deck Height: 36"
• Deck Width:102"

Weight Rating

• GAWR: 10,000 Lbs
• GVWR: 22,400 Lbs

Finish

• Paint Type: Powdercoat
• Prep: Steel Grit Blasted

Colors

• Military Green
• Desert Tan
• Flame Orange
• Midnight Black
• Spectra Yellow
• Blue Horizon
• Lime Green
• Ash Grey
• True Red
• Pearl White
• Cloud Grey
• Navy Blue

Warranty

• Axle Warranty: 5 Year Spring Axle Warranty
• Trailer Warranty: 3 Year Frame / 1 Year Parts Warranty

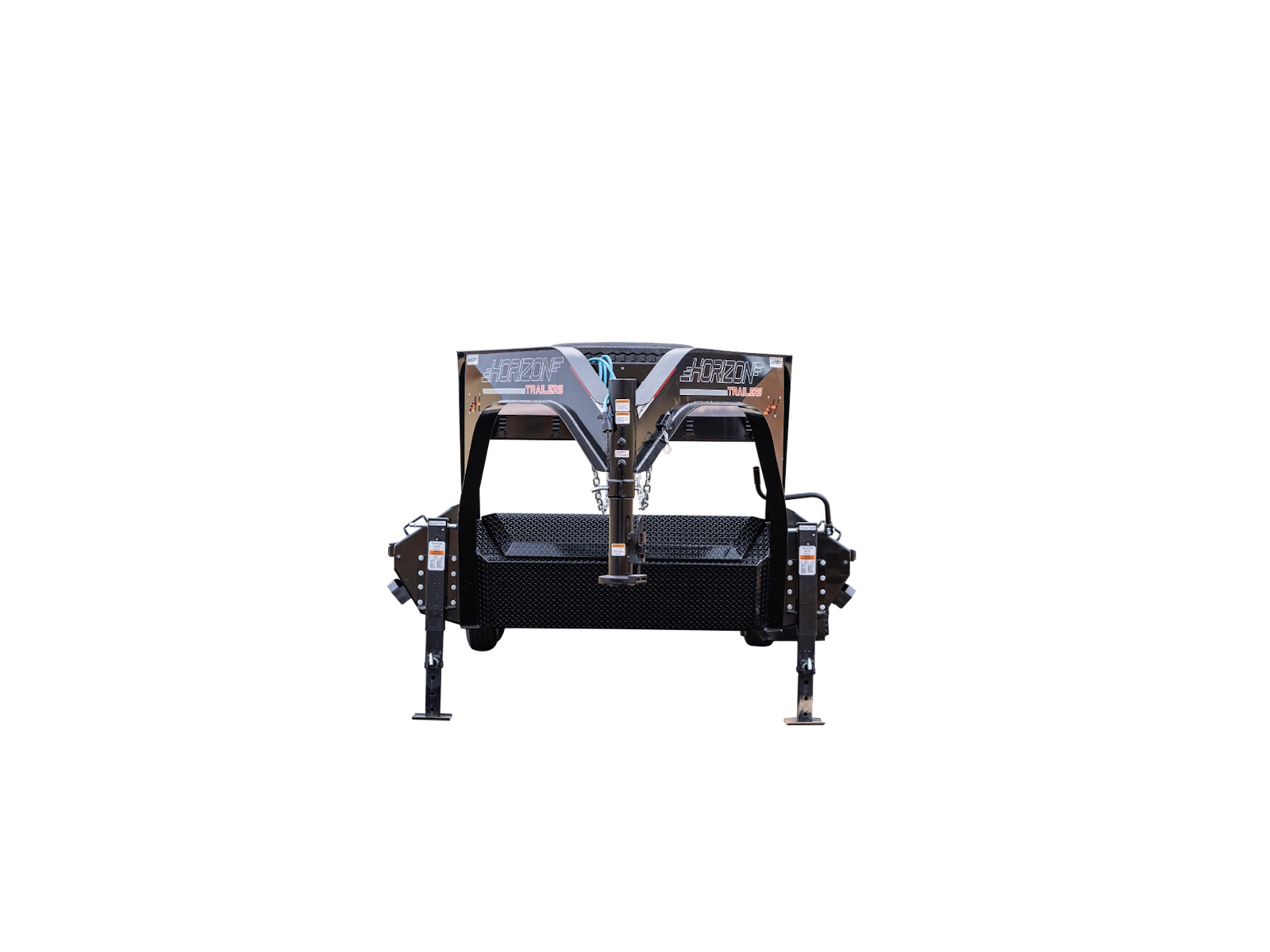

Tongue
Tongue

• Type: Neckboss 12" Engineered I-Beam
• Length: 98" (From Behind Riser)
• Height: 70" (From Underneath Neck)
• Spare: Weld On Spare Tire Mount
• Storage Behind Neck: Chain Rack & Storage Box / Winch Ready

Coupler

• Standard Coupler: Adjustable 2-5/16" Gn Coupler (30,000 Lbs)

Jacks

• Front Jack: 2 Side Wind Spring Loaded Drop Jack Legs (12,000 Lbs)

Toolbox

• Toolbox: Mega Lockable Toolbox

Safety

• Safety Chains: 3/8" Grade 70 Safety Chain W/Clevis Hook (2 Each)

Chassis
Frame

• Main Frame: 12" I-Beam (19 Lbs/Ft)

Side

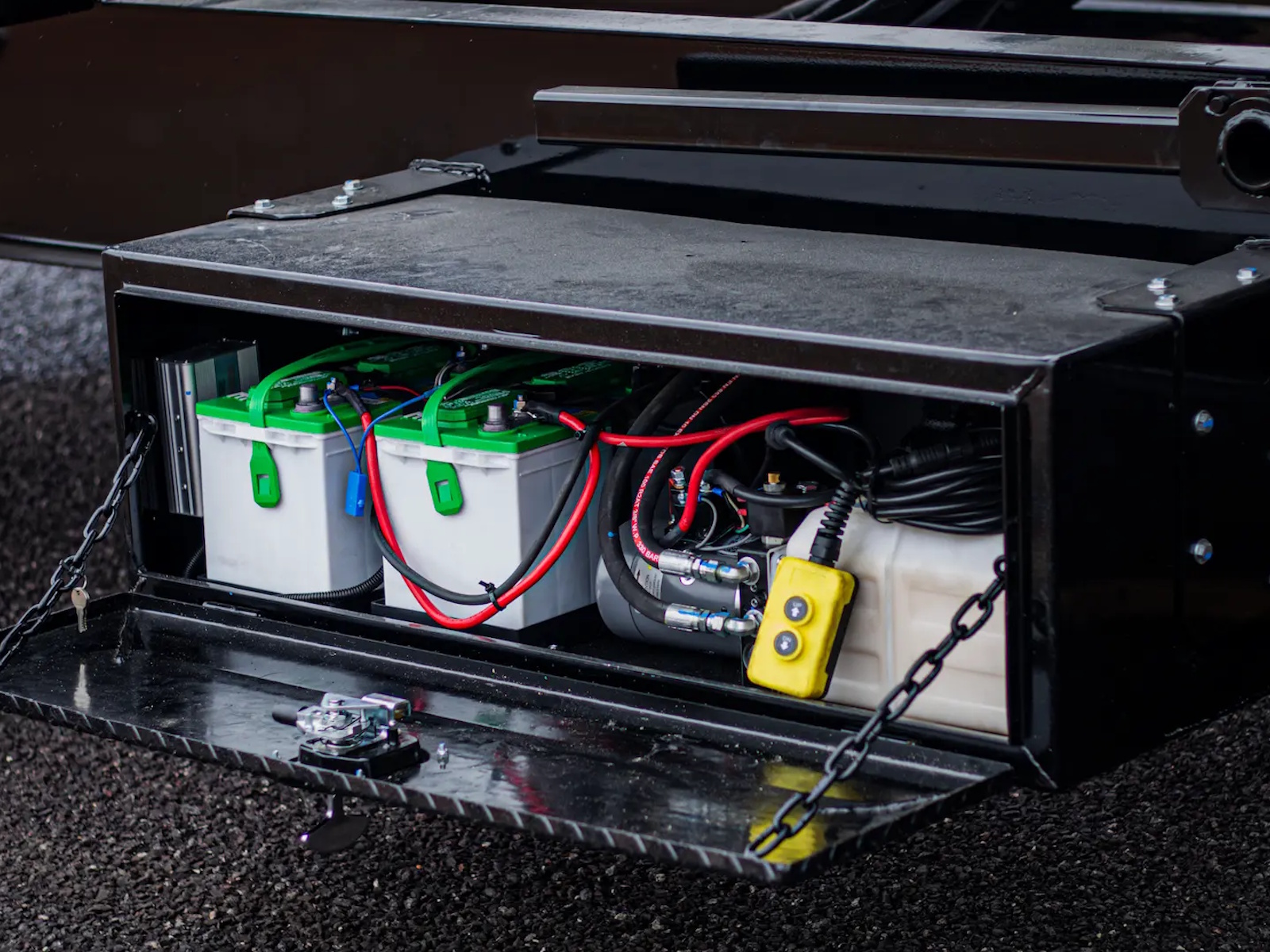

• Left Side: Lockable Toolbox (Houses Batteries And Pump)

Deck

Bed

• Rear Of Deck: 24' Hydraulic Tilt Deck
• Deck Frame: 2" X 5" X 11Ga. Tubing Bed

Frame

• Flooring: Pine Lumber Floor
• Crossmembers: 3" Channel (3.50 Lbs/Ft) 16" Spacing
• Deck Height: 36"
• Deck Width: 102"
• Winch Plate: Winch Plate On Deck

Sides

• Rub Rail: 2" X 3/8" Rub Rail
• Stake Pockets: 1,5/8" X 3,5/8" (Id) Stake Pockets (Spaced At 24")
• Spools: 2" X 10Ga. Pipe Spools (Spaced At 24")
• Sides: Slide In Side Step On Both Sides

Lift System
Hydraulics

• System: 2 Button Hydraulic - Power Up / Power Down
• Pump: KTI 12V Hydraulic Pump
• Controller: 14' Control Cable
• Wireless Controller: Tuff Wireless 2 Button Wireless Remote

Deck Lift

• Lift Cylinder: Hoist W/ 6" X 21" Single Push Cylinder (20,000 Lbs)
• Lift Capacity: 20,000 Lbs When Weight Distributed Across Length Of Deck

Running Gear
Tires

• Type: Radial Tires
• Size: St235/75R17.5, Super Single
• Ply: 18
• Rating: 6,005 Lbs
• Rims: 17.5" Black Mod Wheels

Suspension

• Axle Type: 10K Electric Brake Auto Adjust Oil Bath Spring Axles
• Bolt Pattern: 8 On 6.5"
• Axle Count: 2
• Suspension Type: Spring
• Axle Warranty: 5 Year Spring Axle Warranty

Electrical And Lighting
Battery And Charging

• Battery: 2 - Interstate 27 Deep Cycle Batteries
• Wiring Harness: All-Weather Wiring Harness (7-Way Rv)
• Frame Wiring: Double Insulated Wiring Harness

Lighting

• Lights: Dot Approved Tecniq Led Lights

Safety

• Reflective Tape: 3M Dot Compliant Reflective Tap

Options

Base Model

• FTS2Gn28102-22.4K
• FTSGn 28' X 102" 22.4K Tandem Axle Split Tilt Flatdeck Trailer

Tongue

• FTS-104 12K Ram 2 Speed Jacks $273.00 (Usd)
• FTS-106 $2,665.00 (Usd)
• Fts-201 Locker Style Toolbox $1,449.50 (Usd)
• FTS-302 6" Gn Riser Increase $149.50 (Usd)
• FTS-301 Deck On The Neck (Flip Down Spare Tire Mount Included) $2,457.00 (Usd)
• 508-005 2 - D-Rings Welded Across Deck On The Neck (1/2" - 4,000 Lbs) $41.60 (Usd)
• 508-006 4 - D-Rings Welded Across Deck On The Neck (1/2" - 4,000 Lbs) $84.50 (Usd)
• 508-007 Shocker Hitch 2,5/16" Gn Coupler (30,000 Lbs) $1,638.00 (Usd)

Chassis

• FTS-610 I-Beam Bridge Frame Upgrade $16.90 (Usd) Per Linear Ft
• FTS-203 20' - 44' Deck 1 - Side Mount Undercarriage Toolbox (44"L X 17"W X 14"H) $481.00 (Usd)
• FTS-214 20' - 44' Deck 2 - Side Mount Undercarriage Toolboxes (44"L X 17"W X 14"H) $955.50 (Usd)
• FTS-204 1 - Side Mount Undercarriage Dunnage Rack (44"L X 22"W X 14"H) $481.00 (Usd)
• FTS-218 1 - Side Mount Undercarriage Dunnage Rack (9'L X 22"W X 14"H) $754.00 (Usd)

Deck

• FTS-402 12" Crossmember Spacing $15.60 (Usd) Per Linear Ft
• 506-004 Deck Sides Blackwood "Classic" Rubber Infused Lumber $19.50 (Usd) Per Linear Ft
• 506-005 Full Deck Blackwood "Classic" Rubber Infused Lumber $37.70 (Usd) Per Linear Ft
• FTS-411 Ratchet Slide Track Left Side $20.80 (Usd) Per Linear Ft
• FTS-412 Ratchet Slide Track Right Side $20.80 (Usd) Per Linear Ft
• 507-007 6 - 4" Sliding Ratchets $572.00 (Usd)
• 507-008 8 - 4" Sliding Ratchets $767.00 (Usd)
• 507-009 10 - 4" Sliding Ratchets $955.50 (Usd)
• 507-010 12 - 4" Sliding Ratchets $1,144.00 (Usd)
• 507-011 6 - Weld On 4" Ratchets Right Side $572.00 (Usd)
• 507-012 8 - Weld On 4" Ratchets Right Side $767.00 (Usd)
• 507-013 10 - Weld On 4" Ratchets Right Side $955.50 (Usd)
• 507-014 12 - Weld On 4" Ratchets Right Side $1,144.00 (Usd)
• 507-004 4" X 30' Kinedyne Winch Strap With Flat Hook (5,400 Lbs) $54.60 (Usd) Each
• 508-001 4 Additional D-Rings Welded Across Deck (1/2" - 4,000 Lbs) $84.50 (Usd)
• 508-002 6 Additional D-Rings Welded Across Deck (1/2" - 4,000 Lbs) $123.50 (Usd)
• 508-003 8 Additional D-Rings Welded Across Deck (1/2" - 4,000 Lbs) $162.50 (Usd)

Lift System
Lift System

• 509-017 Tuff Wireless 2 Button Remote (Hoist - Hydraulic Jacks) $708.50 (Usd)
• 509-020 Tuff Wireless 4 Button Remote (Hoist - Winch) $858.00 (Usd)

8 Button Remote Option*6 Buttons In Use Only*

• 509-026 Tuff Wireless 8 Button Remote (Hoist - Hydraulic Jacks - Winch) $1,254.50 (Usd)
• 504-012 13.5K Steel Cable Winchmax Winch $1,774.50 (Usd)
• 504-013 13.5K Synthetic Rope Winchmax Winch $2,047.50 (Usd)
• 504-014 17.5K Steel Cable Winchmax Winch $2,255.50 (Usd)
• 504-015 17.5K Synthetic Rope Winchmax Winch $2,938.00 (Usd)

Running Gear

Spare Tire Options

• 501-107 St235/75R17.5 18 Ply Tire Super Single (6,005 Lbs) $318.50 (Usd)

Electrical And Lighting

• 505-001 10 Watt Solar Panel $481.00 (Usd)
• FTS-305 2 - Cargo Lights Mounted On Riser $546.00 (Usd)

Finish

• FTS-815 20Ft & Up Zinc Primer Undercoat $1,365.00 (Usd)
• FTS-821 Side Mount Undercarriage Toolboxes Painted Black $273.00 (Usd) Per Toolbox
• FTS-823 Side Mount Undercarriage Dunnage Racks Painted Black $344.50 (Usd) Per Rack
