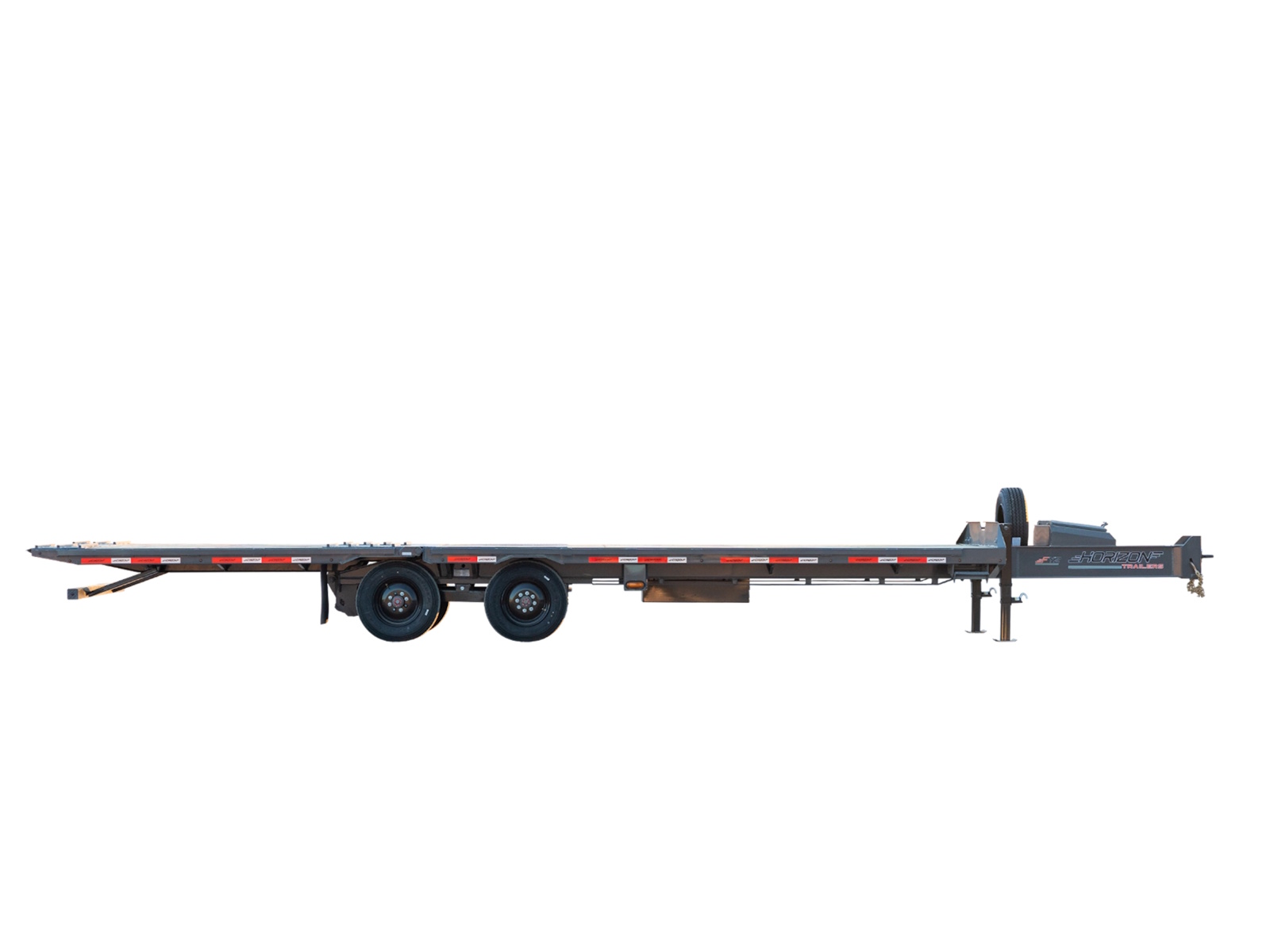

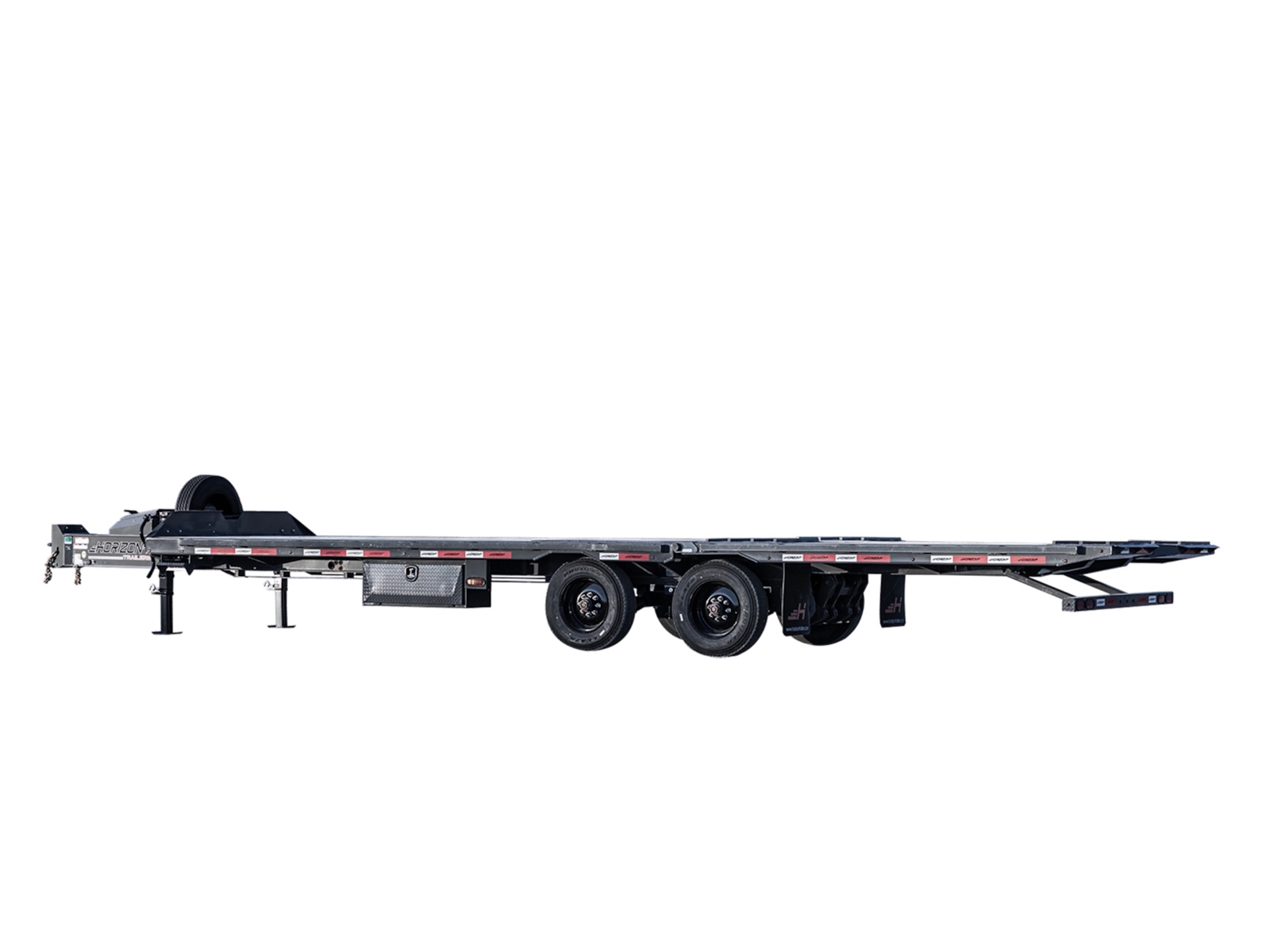

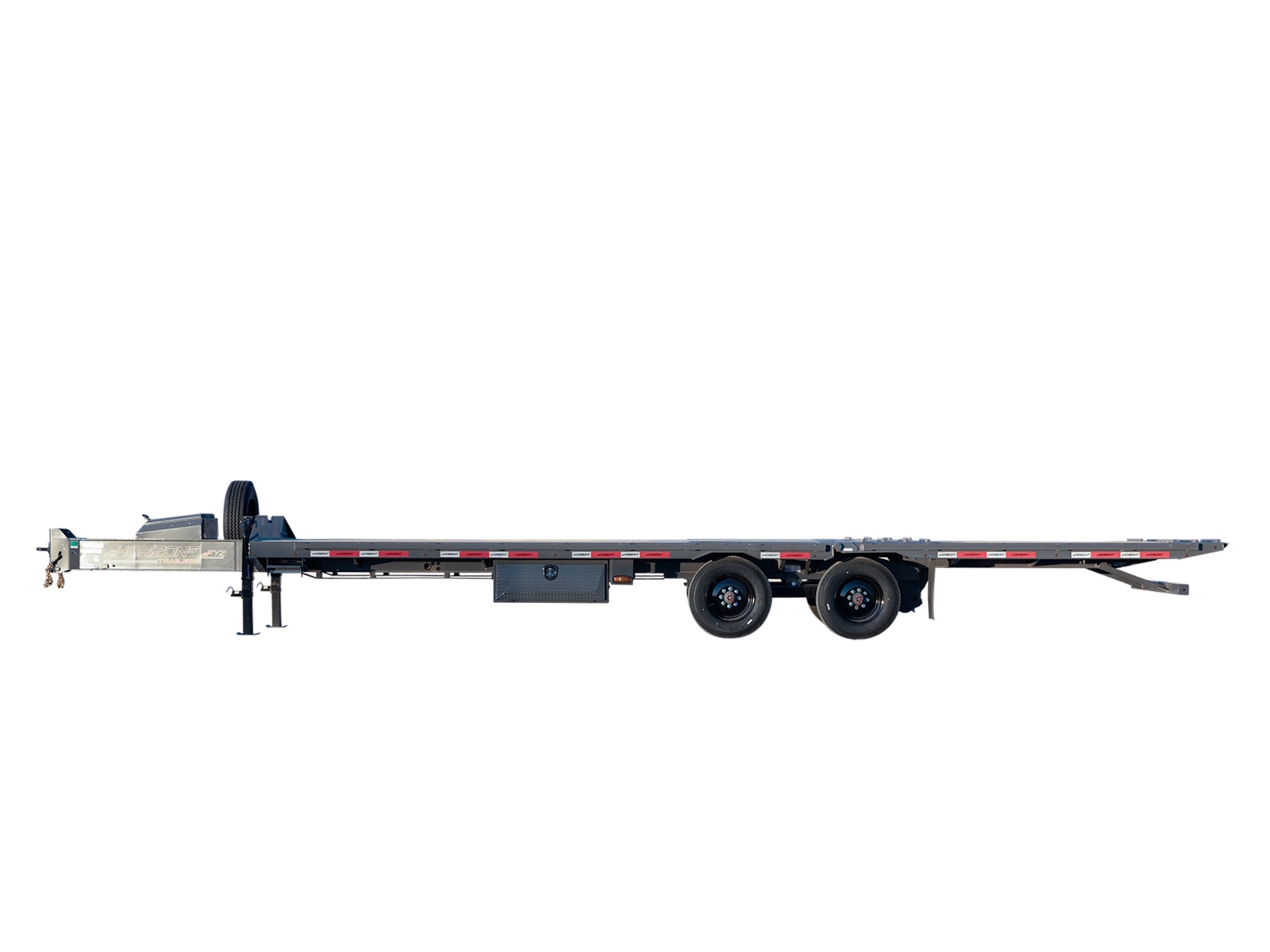

2026 Horizon FYZSS 25.9K 102 in PH 40 ft

The FYZSS 25.9K 102" Hydraulic Dovetail Flatdeck trailer offers unmatched durability with its 12" I-Beam frame, hydraulic dovetail for effortless loading, and a 25,900 lbs GVWR. Choose from deck lengths up to 44' and a variety of powdercoat colors. Built for reliability, this gooseneck trailer is perfect for heavy-duty hauling needs.

Unmatched Strength and Durability

HEAVY-DUTY PERFORMANCE

The FYZSS 25.9K 102" Hydraulic Dovetail Flatdeck is engineered with a 12" I-Beam frame and a 12' hydraulic dovetail, boasting a 10,000 lbs lift capacity. Its 25,900 lbs GVWR and lengths up to 44' make it ideal for heavy-duty tasks. Choose from vibrant powdercoat colors to suit your style. Haul smarter with confidence today!

Effortless Loading and Hauling

BUILT TO WORK HARDER

Featuring a 12' hydraulic dovetail with wireless controls, this trailer simplifies loading heavy cargo. The rugged Bridged 12" I-Beam frame and dual 12k axles ensure stability and strength. With a variety of lengths and finishes, the FYZSS 25.9K adapts to your toughest challenges. Get the trailer that works as hard as you do!

Designed for the Long Haul

TOUGH, RELIABLE, AND VERSATILE

Built with premium components like a diamond mesh wire floor storage, slide-in side steps, and DOT-approved LED lights, the FYZSS 25.9K 102" Hydraulic Dovetail Trailer delivers both utility and safety. Its customizable options and extended warranties provide peace of mind for every haul. Make your investment count with this go-anywhere trailer!

Features May Include:

Standard Features

Highlights

• Bridged 12" I-Beam (19 lbs/ft)
• Neckboss 12" Engineered I-Beam
• Diamond Mesh Wire Floor Storage
• Weld On Spare Tire Mount
• 2" X 6" X 7ga. TUBING BED FRAME
• SLIDE IN SIDE STEP ON BOTH SIDES

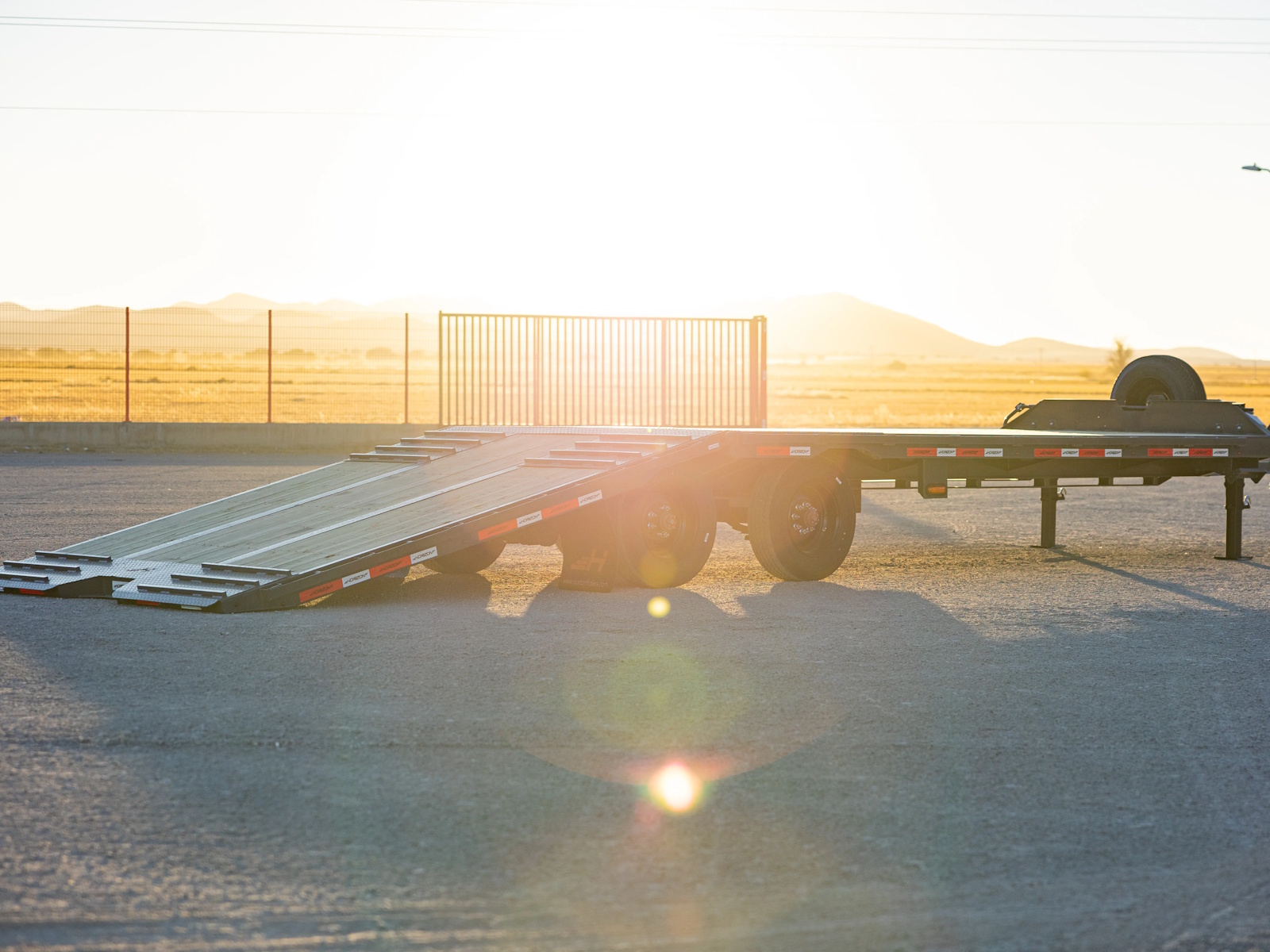

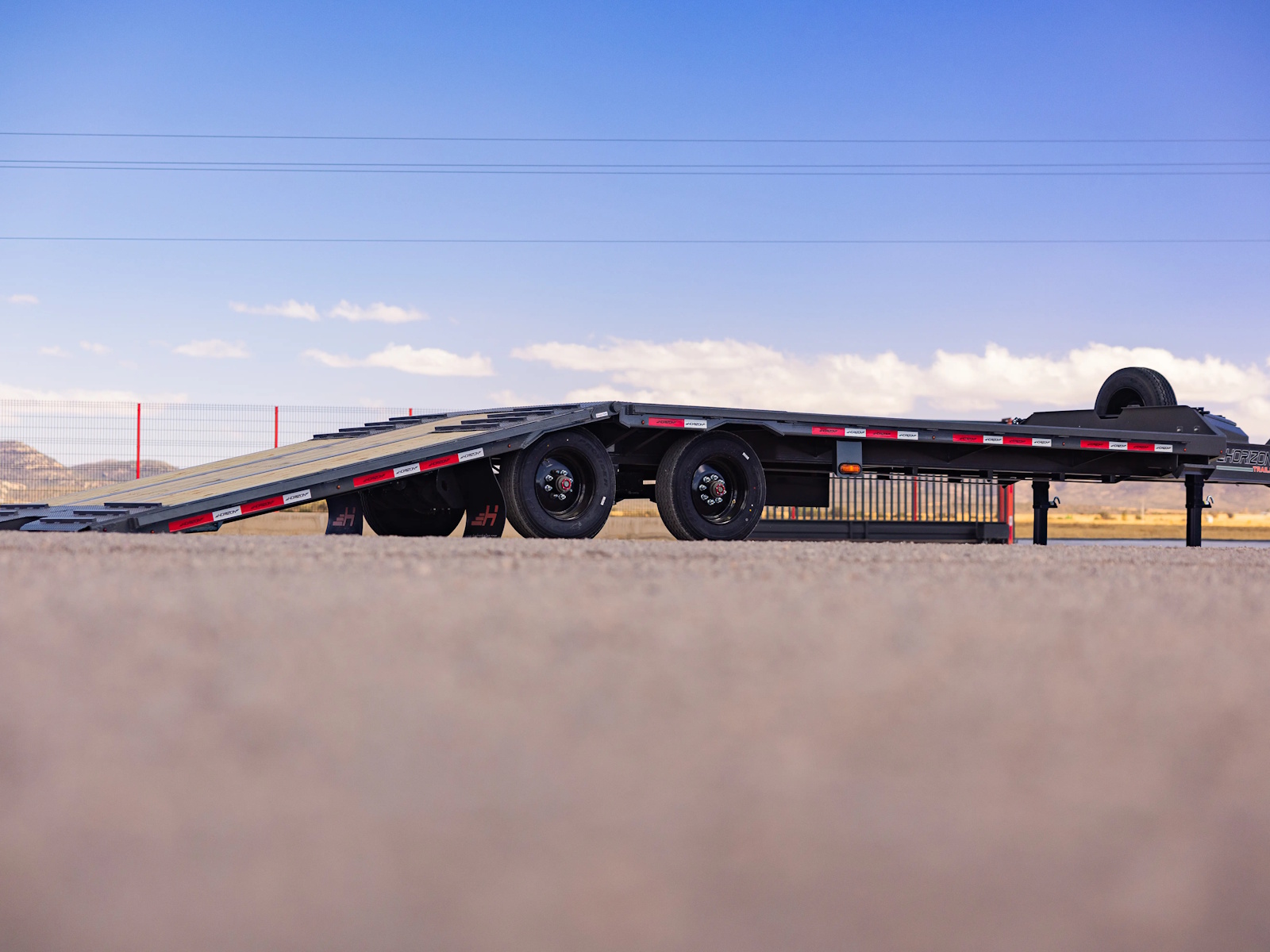

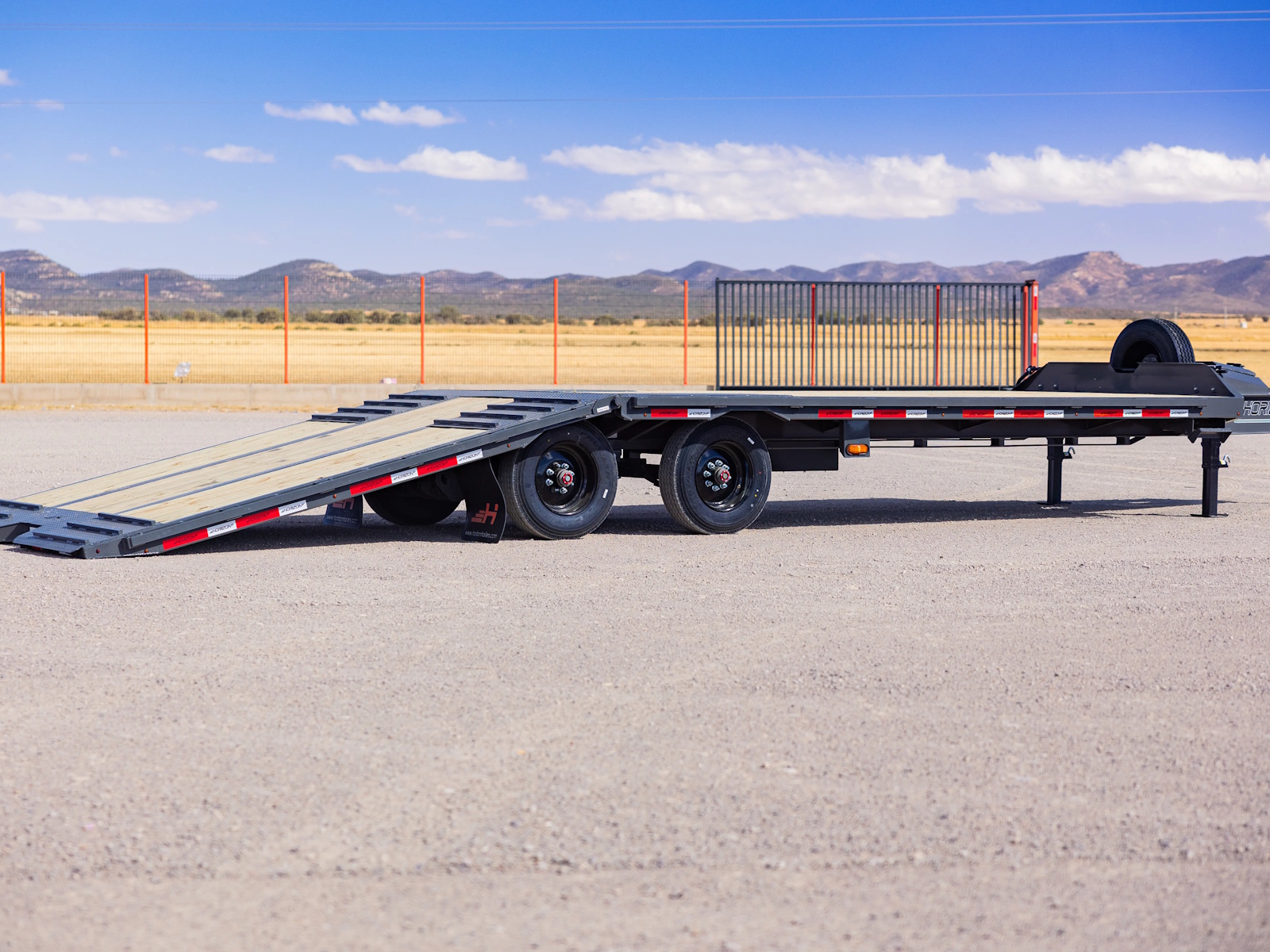

• 12' Hydraulic Dovetail
• Dovetail 10" Fabricated High-Tensil Steel I-Beam
• 10,000 lbs Lifting And Hauling Capacity
• Tuff Wireless 2 Button Remote (Dovetail)

Trailer Specs

Dimensions

• Available Lengths: 30', 32', 34', 36', 38', 40', 42', 44'
• Deck Height: 34"
• Deck Width: 102"

Weight Rating

• GAWR: 12,000 lbs
• GVWR: 25,900 lbs

Finish

• Paint Type: Powdercoat
• Prep: Steel Grit Blasted

Colors

• Military Green
• Desert Tan
• Flame Orange
• Midnight Black
• Spectra Yellow
• Blue Horizon
• Lime Green
• Ash Grey
• True Red
• Pearl White
• Cloud Grey
• Navy Blue

Warranty

• Axle Warranty: 5 Year Spring Axle Warranty
• Trailer Warranty: 3 Year Frame / 1 Year Parts Warranty

Tongue

• Type: Neckboss 12" Engineered I-Beam
• Length: 83"

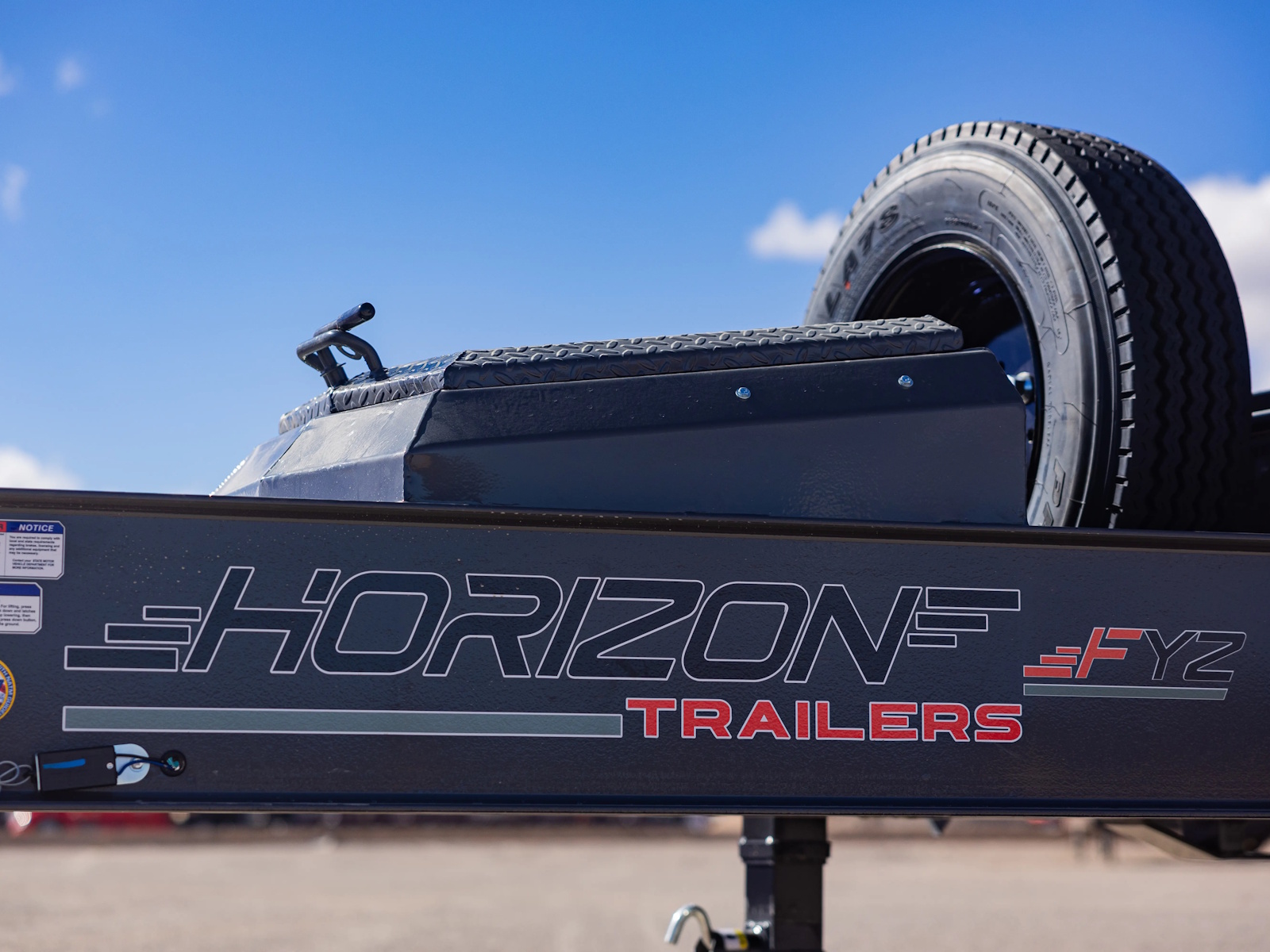

• Spare: Weld On Spare Tire Mount
• Winch Plate: Winch Plate Behind Neck

Coupler

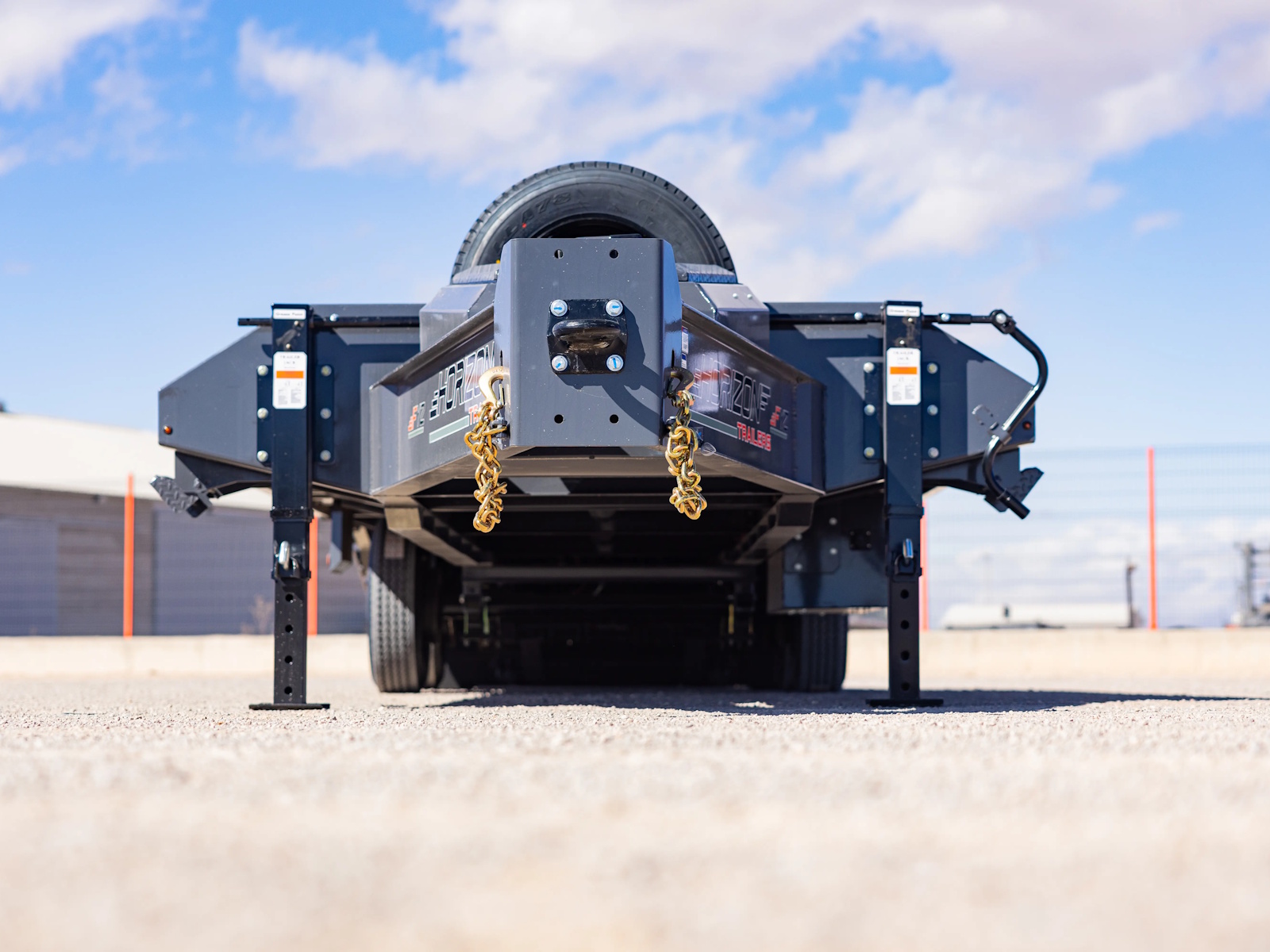

• Standard Coupler: Pintle Ring (42,000 lbs)

Jacks

• Front Jack: 2 Side Wind Spring Loaded Drop Jack Legs (12,000 lbs)

Toolbox

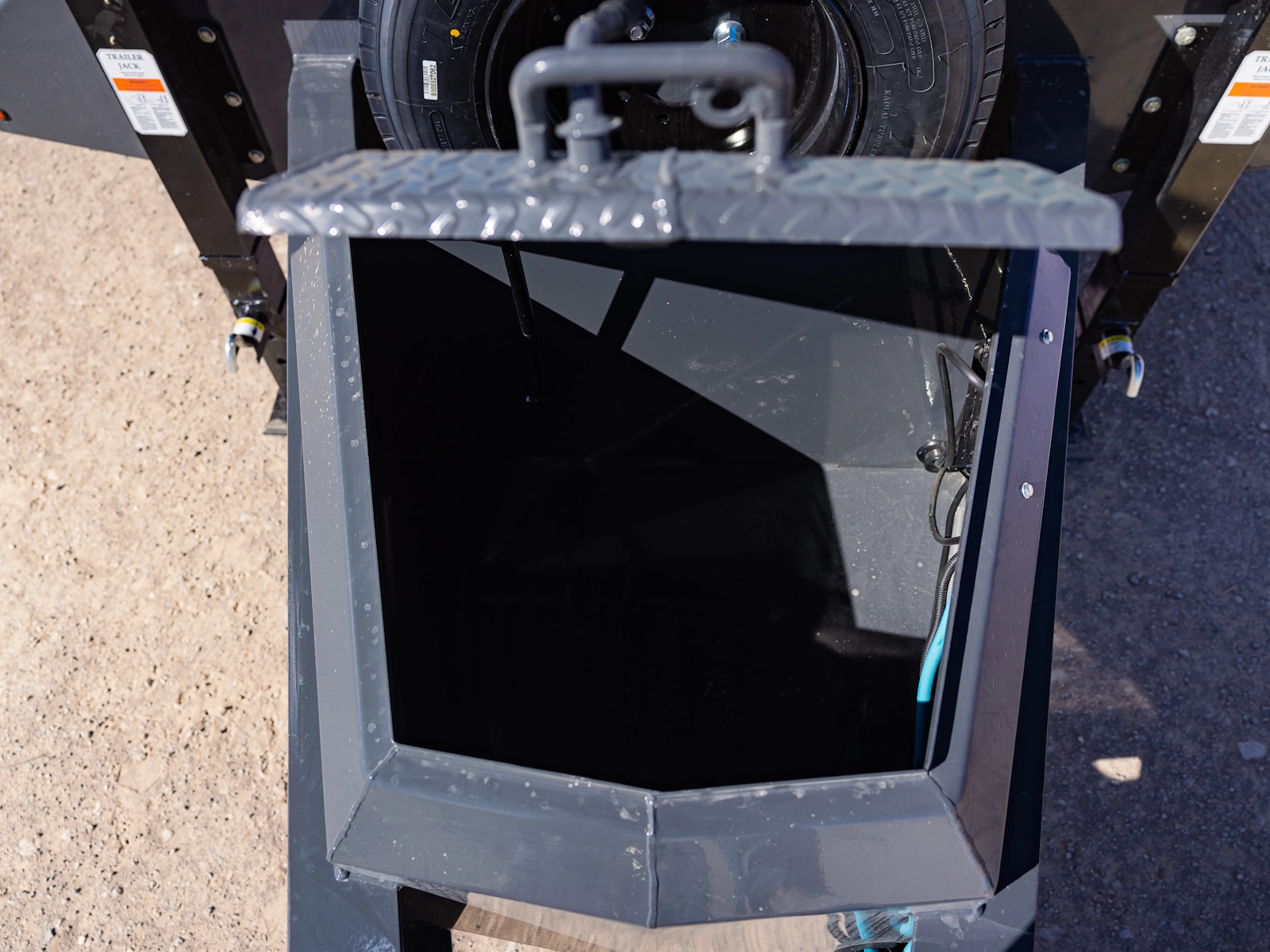

• Toolbox: Diamond Mesh Wire Floor Storage

Safety

• Safety Chains: 3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)

Chassis

Frame

• Main Frame: Bridged 12" I-Beam (19 lbs/ft)
• Torque Tube30' And Up Only: 4,1/2" Tube
• Dovetail Frame: 10" Engineered High-Tensile Steel I-Beam

Side

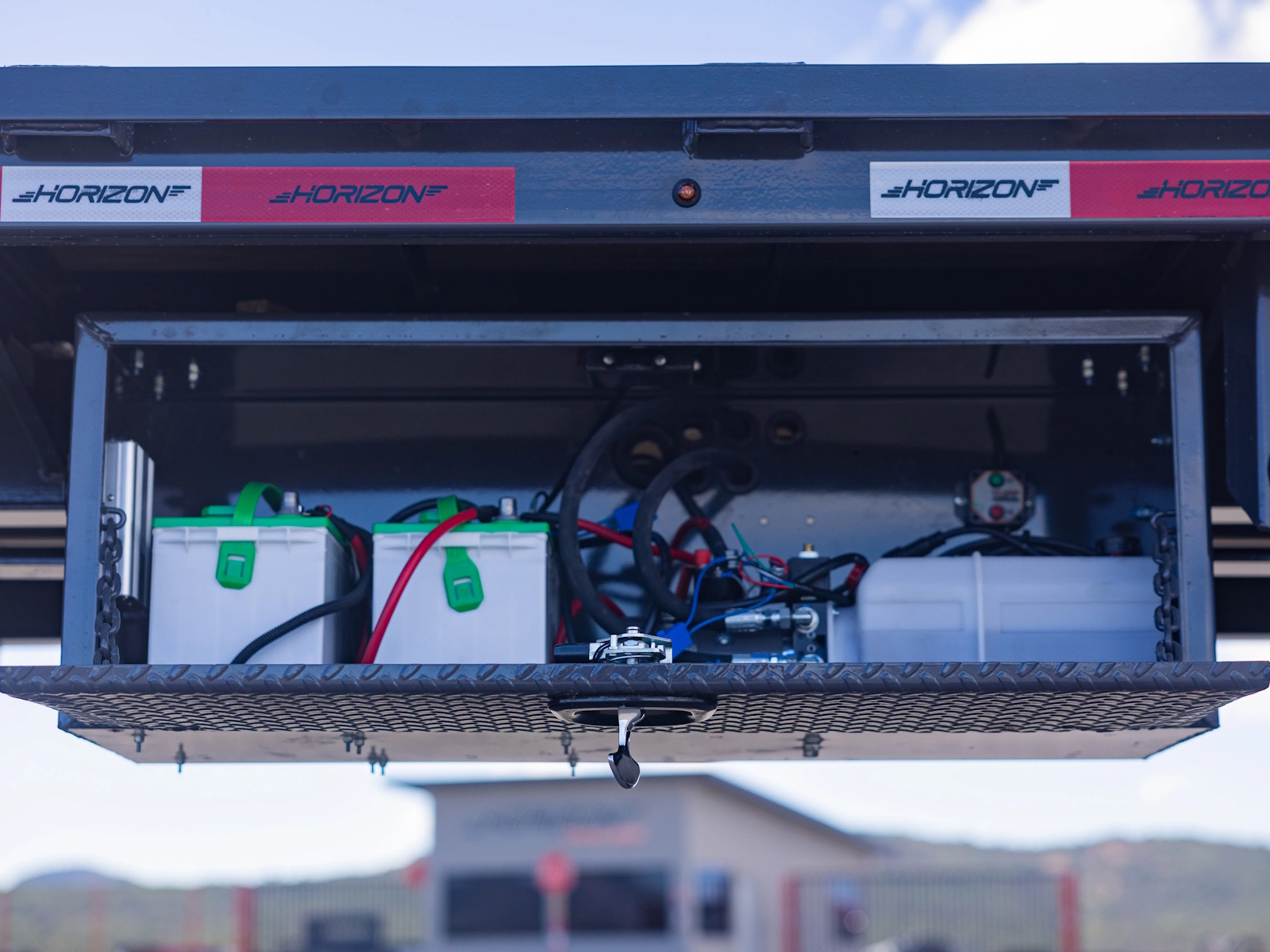

• Left Side: Lockable Toolbox (Houses Batteries And Pump)

Deck

Bed

• Rear Of Deck: 12' Dovetail
• Deck Frame: 2" x 6" x 7ga. Tubing Bed Frame

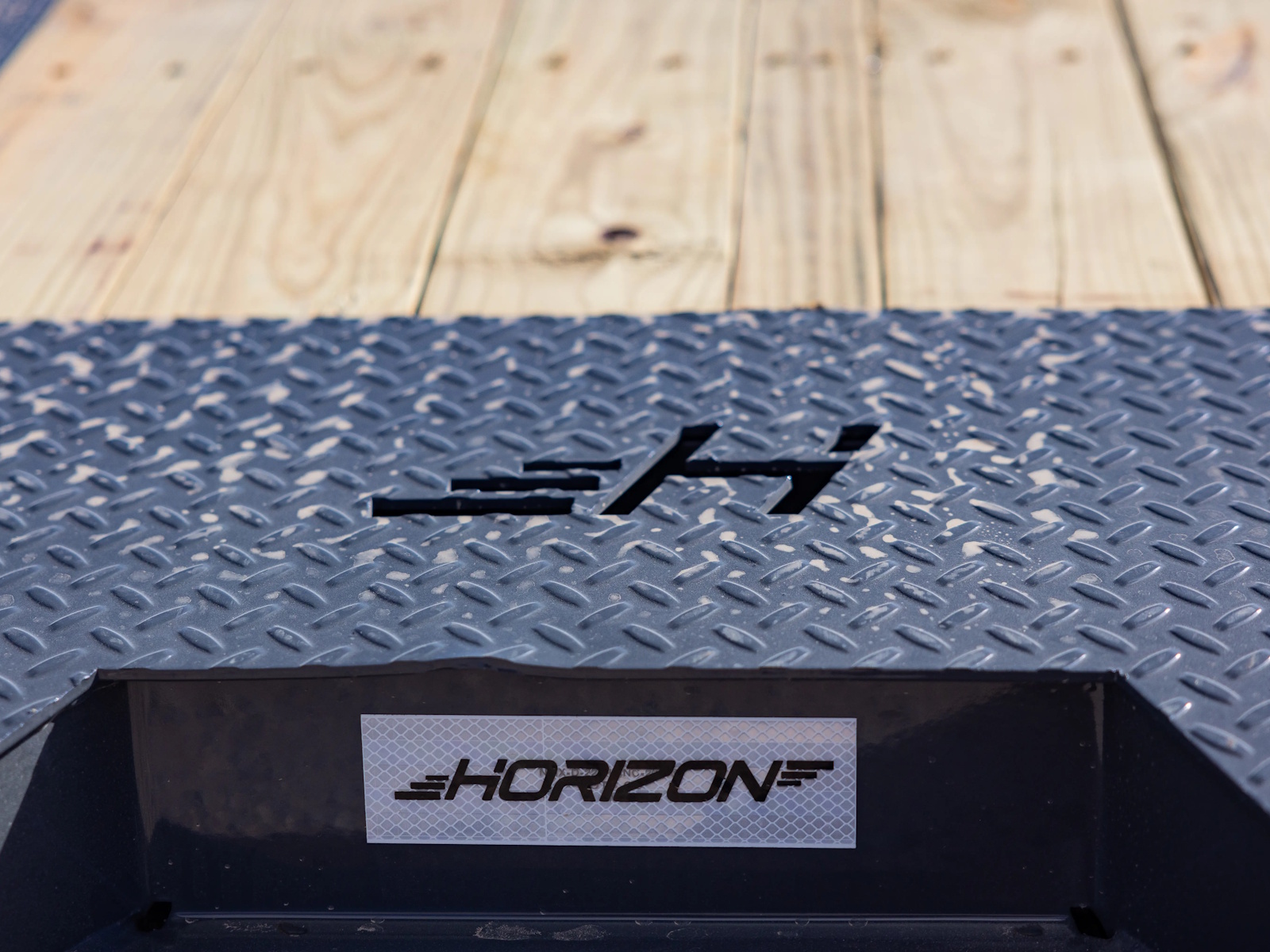

• Flooring: Pine Lumber Floor
• Crossmembers: 3" Channel (3.50 lbs/ft) 16" Spacing
• Deck Height: 34"
• Deck Width: 102"

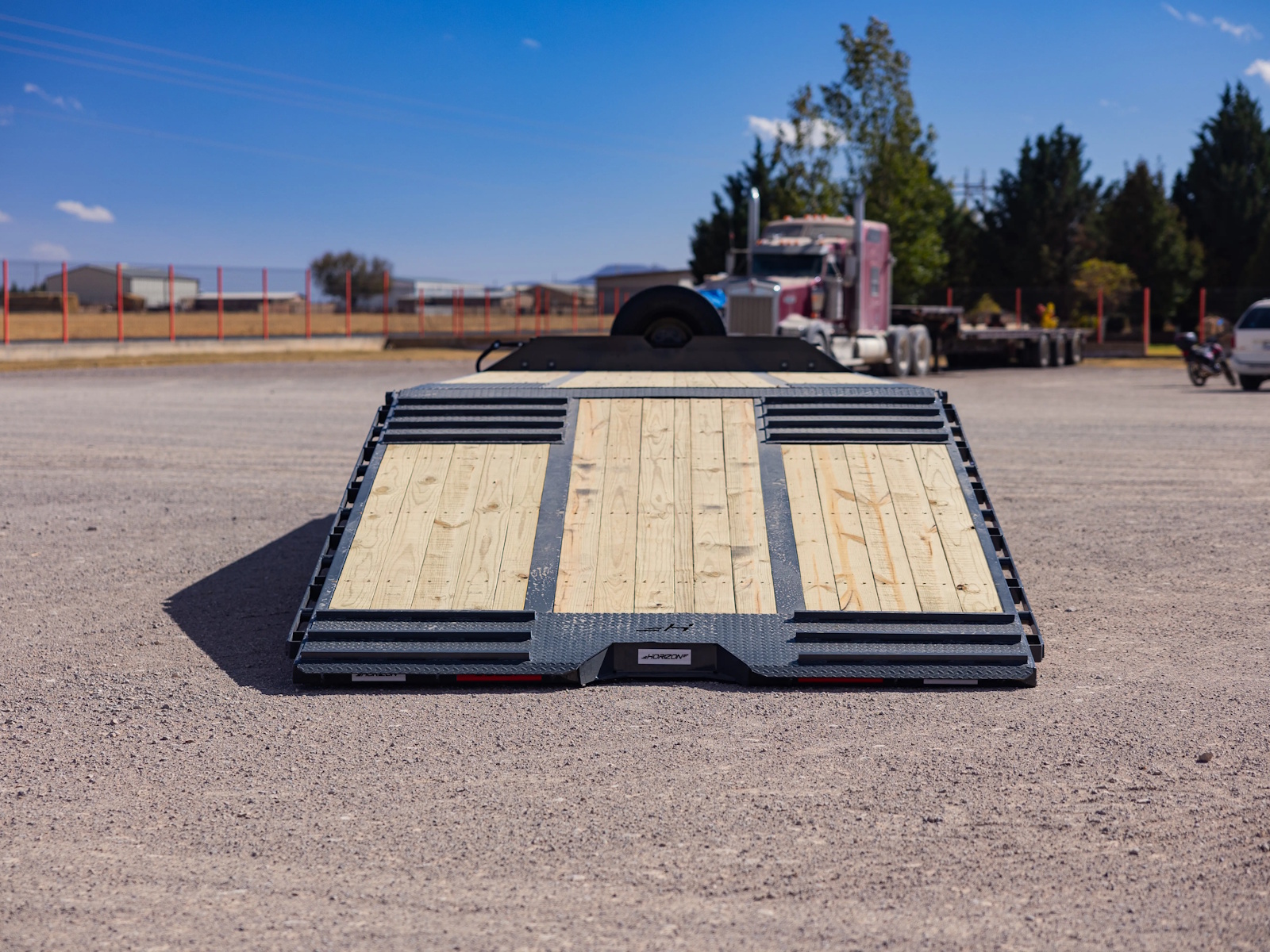

Dovetail

• Deck Frame: 2" x 6" x 7ga. Tubing Bed Frame
• Flooring: Pine Lumber Floor
• Crossmembers: 3" I-Beam
• Deck Height: 34"
• Deck Width: 102"

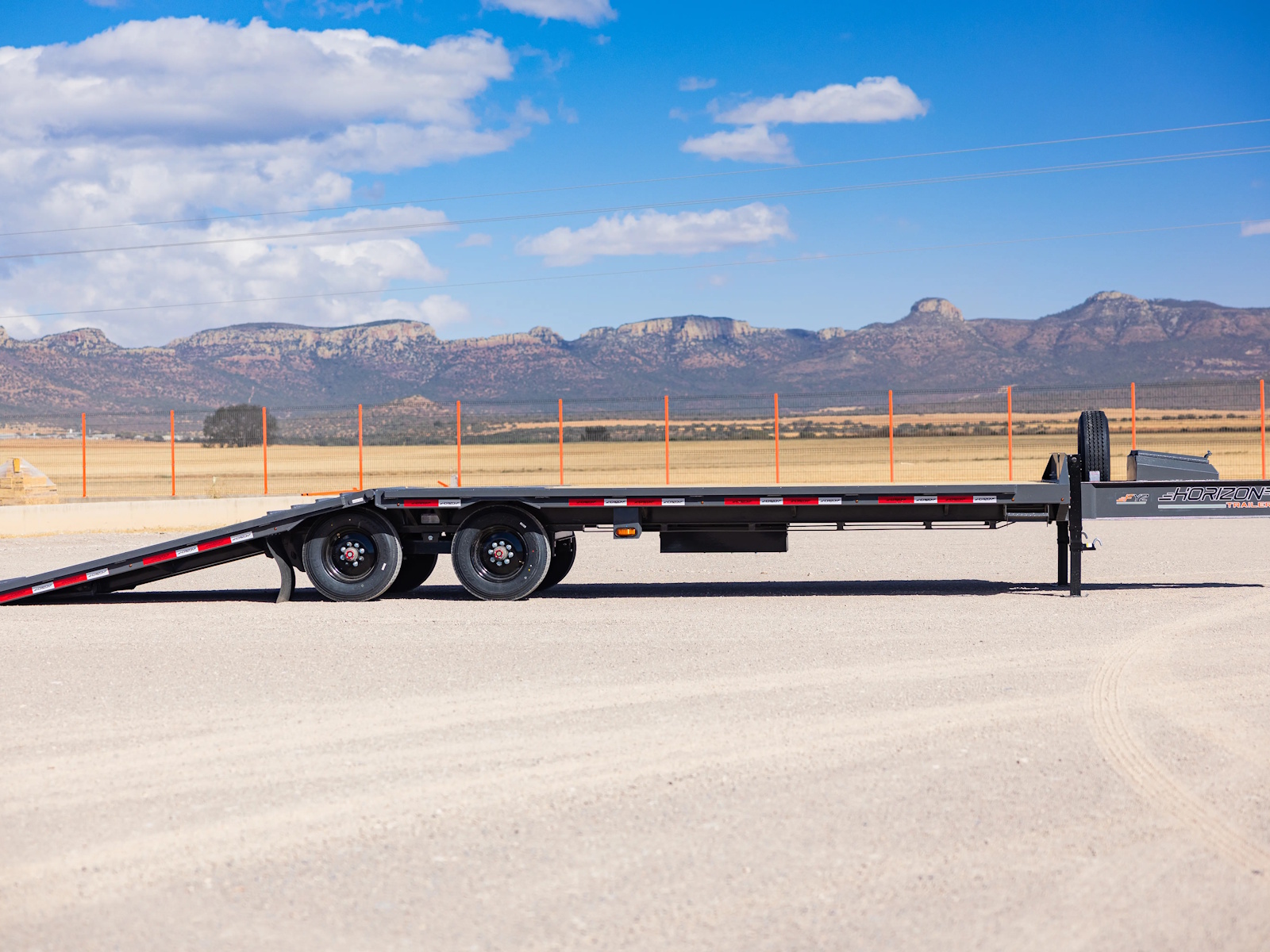

• Dovetail Length: 12'
• Hauling Capacity: 10,000 lbs When Weight Distributed Across Length Of Deck
• Tilt: 13° (Tilt)

Sides

• Rub Rail: 2" x 3/8" Rub Rail
• Stake Pockets: 1,5/8" x 3,5/8" (ID) Stake Pockets (Spaced At 24")
• Spools: 2" x 10ga. Pipe Spools (Spaced At 24")
• Sides: Slide In Side Step On Both Sides

Lift System

Hydraulics

• System: 2 Button Hydraulic - Power Up / Power Down
• Pump: KTI 12V Hydraulic Pump
• Controller: 14' Control Cable
• Wireless Controller: Tuff Wireless 2 Button Wireless Remote

12' Dovetail

• Cylinders: 2 - 4" X 16" Single Push Cylinders
• Lift Capacity: 10,000 lbs When Weight Distributed Across Length Of Deck

Running Gear

Tires

• Type: Radial Tires
• Size: ST235/75R17.5, Super Single
• Ply: 18
• Rating: 6,005 lbs
• Rims: 17.5" Black Mod Wheels

Suspension

• Axle Type: 10k Electric Brake Auto Adjust Oil Bath Spring Axles
• Bolt Pattern: 8 On 6.5"
• Axle Count: 2
• Suspension Type: Spring
• Axle Warranty: 5 Year Spring Axle Warranty

Electrical And Lighting

Battery And Charging

• Battery: 2 - Interstate 27 Deep Cycle Batteries
• Wiring Harness: All-Weather Wiring Harness (7-Way RV)
• Frame Wiring: Double Insulated Wiring Harness

Lighting

• Lights: DOT Approved Tecniq LED Lights

Safety

• Reflective Tape: 3M Dot Compliant Reflective Tape

Options

Base Model

• FYZSS2PH30102-25.9KFYZSS PH 30' x 102" 25.9K Tandem Axle Hydraulic Dovetail Flatdeck Trailer
• FYZSS2PH32102-25.9KFYZSS PH 32' x 102" 25.9K Tandem Axle Hydraulic Dovetail Flatdeck Trailer
• FYZSS2PH34102-25.9KFYZSS PH 34' x 102" 25.9K Tandem Axle Hydraulic Dovetail Flatdeck Trailer
• FYZSS2PH36102-25.9KFYZSS PH 36' x 102" 25.9K Tandem Axle Hydraulic Dovetail Flatdeck Trailer
• FYZSS2PH38102-25.9KFYZSS PH 38' x 102" 25.9K Tandem Axle Hydraulic Dovetail Flatdeck Trailer
• FYZSS2PH40102-25.9KFYZSS PH 40' x 102" 25.9K Tandem Axle Hydraulic Dovetail Flatdeck Trailer
• FYZSS2PH42102-25.9KFYZSS PH 42' x 102" 25.9K Tandem Axle Hydraulic Dovetail Flatdeck Trailer
• FYZSS2PH44102-25.9KFYZSS PH 44' x 102" 25.9K Tandem Axle Hydraulic Dovetail Flatdeck Trailer

Tongue

• FHZ-11012k Ram 2 Speed Jacks$273.00 (USD)
• FHZ-10917.5K Jost 2 Speed Jacks$1,163.50 (USD)
• FYZ-11112k Hydraulic Jacks$2,665.00 (USD)
• FYZ-213Mega Lockable Toolbox$273.00 (USD)

Chassis

• FYZ-631Bridged 12" I-Beam (22 lbs/ft) Frame Upgrade$20.80 (USD) per linear ft
• FYZ-20320' - 44' Deck 1 - Side Mount Undercarriage Toolbox (44"L x 17"W x 14"H)$481.00 (USD)
• FYZ-21420' - 44' Deck 2 - Side Mount Undercarriage Toolboxes (44"L x 17"W x 14"H)$955.50 (USD)
• FYZ-21530' - 44' Deck 3 - Side Mount Undercarriage Toolboxes (44"L x 17"W x 14"H)$1,436.50 (USD)
• FYZ-21630' - 44' Deck 4 - Side Mount Undercarriage Toolboxes (44"L x 17"W x 14"H)$1,911.00 (USD)
• FYZ-2041 - Side Mount Undercarriage Dunnage Rack (44"L x 22"W x 14"H)$481.00 (USD)
• FYZ-2181 - Side Mount Undercarriage Dunnage Rack (9'L x 22"W x 14"H)$754.00 (USD)

Deck

• FYZ-40212" Crossmember Spacing$15.60 (USD) per linear ft
• 506-004Deck Sides Blackwood "Classic" Rubber Infused Lumber$19.50 (USD) per linear ft
• 506-005Full Deck Blackwood "Classic" Rubber Infused Lumber$37.70 (USD) per linear ft
• FYZ-411Ratchet Slide Track Left Side$20.80 (USD) per linear ft
• FYZ-412Ratchet Slide Track Right Side$20.80 (USD) per linear ft
• 507-0076 - 4" Sliding Ratchets$572.00 (USD)
• 507-0088 - 4" Sliding Ratchets$767.00 (USD)
• 507-00910 - 4" Sliding Ratchets$955.50 (USD)
• 507-01012 - 4" Sliding Ratchets$1,144.00 (USD)
• 507-0116 - Weld On 4" Ratchets Right Side$572.00 (USD)
• 507-0128 - Weld On 4" Ratchets Right Side$767.00 (USD)
• 507-01310 - Weld On 4" Ratchets Right Side$955.50 (USD)
• 507-01412 - Weld On 4" Ratchets Right Side$1,144.00 (USD)
• 507-0044" x 30' Kinedyne Winch Strap with Flat Hook (5,400 lbs)$54.60 (USD) each
• 508-0014 Additional D-Rings Welded Across Deck (1/2" - 4,000 lbs)$84.50 (USD)
• 508-0026 Additional D-Rings Welded Across Deck (1/2" - 4,000 lbs)$123.50 (USD)
• 508-0038 Additional D-Rings Welded Across Deck (1/2" - 4,000 lbs)$162.50 (USD)

Dovetail

• 506-008Dovetail Deck Sides Blackwood "Classic" Rubber Infused Lumber$19.50 (USD) per linear ft
• 506-009Dovetail Full Deck Blackwood "Classic" Rubber Infused Lumber$37.70 (USD) per linear ft
• 508-0072 - D-Rings Welded Across Dovetail (1/2" - 4,000 lbs)$41.60 (USD)
• 508-0084 - D-Rings Welded Across Dovetail (1/2" - 4,000 lbs)$84.50 (USD)

Running Gear

Brakes Upgrade Option

• 500-2332 - 12k Elec / Hydraulic Disc Brake S/ Single Oil Bath Spring Axles w/ Hydrastar CAM$5,187.00 (USD)

Hutchens Suspension Upgrade/ Axle Options

• 501-200Standard Axles w/ Hutchens Suspension$1,638.00 (USD)
• 500-2342 - 12k Elec / Hydraulic Disc Brake S/ Single Oil Bath Axles w/ Hydrastar CAM w/ Hutchens Suspension$6,825.00 (USD)

Ridewell Air Ride Suspension Upgrade/ Axles Options

• 500-210Standard Axles w/ Air Ride Suspension$9,964.50 (USD)
• 500-2352 - 12k Elec / Hydraulic Disc Brake S/ Single Oil Bath Axles w/ Hydrastar CAM w/ Air Ride Suspension$15,151.50 (USD)

Lift Axle Ridewell Air Ride Upgrade/ Axles Options

• 500-211Standard Axles w/ Air Ride Suspension w/ 1 Lift Axle$10,920.00 (USD)
• 500-2362 - 12k Elec / Hydraulic Disc Brake S/ Single Oil Bath Axles w/ Hydrastar CAM w/ Air Ride Suspension w/ 1 Lift Axle$16,107.00 (USD)

Spare Tire Options

• 501-107ST235/75R17.5 18 Ply Tire Super Single (6,005 lbs)$318.50 (USD)

Electrical And Lighting

• 505-00110 Watt Solar Panel

Finish

• FYZ-81520ft & Up Zinc Primer Undercoat$1,365.00 (USD)
• FYZ-804Toolbox Painted Black$208.00 (USD)
• FYZ-821Side Mount Undercarriage Toolboxes Painted Black$273.00 (USD) per toolbox
• FYZ-823Side Mount Undercarriage Dunnage Racks Painted Black$344.50 (USD) per rack
