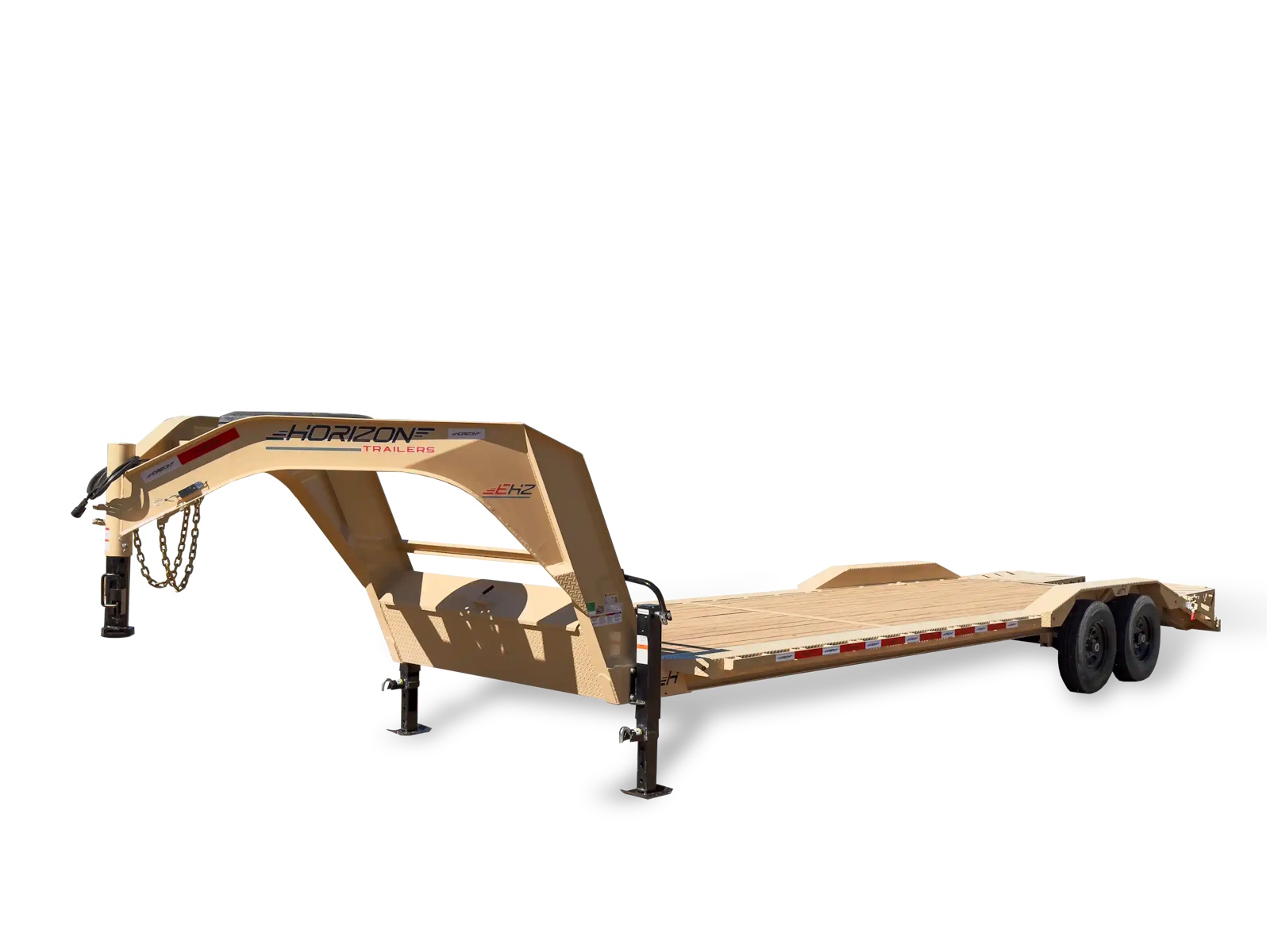

2026 Horizon EHZ 17.9K 102 in GN 22 ft

The EHZ 17.9K 102" Equipment Hauler combines robust design and premium features, including an 8" I-Beam frame, Mega Lockable Toolbox, and adjustable gooseneck coupler. With a GVWR of 17,900 lbs and deck lengths up to 26', it's perfect for heavy-duty jobs. Available in 12 stunning colors to match your style and needs.

BUILT TO LAST, ENGINEERED FOR PERFORMANCE

MAXIMUM DURABILITY FOR TOUGH JOBS

The EHZ 17.9K Equipment Hauler features an 8" I-Beam frame, powder-coat finish, and 8k axles for unmatched durability. Its spacious 102" deck width and available dovetail ramps ensure efficient loading and transport of heavy equipment. Choose from 20' to 26' deck lengths to tackle any task. Order now and upgrade your hauling game!

EVERY DETAIL, DESIGNED FOR YOU

INNOVATIVE FEATURES YOU NEED

Enjoy advanced features like a Mega Lockable Toolbox, ramp pockets with heavy-duty slide-in ramps, and 3M reflective tape for enhanced safety. The EHZ 17.9K Equipment Hauler also boasts a 25" deck height for convenience and pine lumber flooring for durability. Pick your perfect match from 12 bold color options today!

HEAVY LOADS MADE EASY

A VERSATILE WORKHORSE

Haul confidently with the EHZ 17.9K 102" Equipment Hauler. With a GVWR of 17,900 lbs, dual 8k axles, and military-grade engineering, this trailer is ready for any challenge. Whether it's construction, landscaping, or industrial transport, the EHZ 17.9K delivers unmatched versatility and strength. Request a quote now and take the first step!

Features May Include:

Highlights

• 8" I-Beam (15 Lbs/Ft)
• Neckboss 10" Engineered I-Beam
• Mega Lockable Toolbox
• Robust Toolbox Latch
• Weld On Spare Tire Mount
• Outer Deck Frame 3/16" Diamond Plate
• 2' Dovetail
• Ramp Pockets W/ 5' 6" Long Heavy Duty Slide In 4" Channel Ramps
• 2 D-Rings In Between Fenders
• 83" Wide In Between Fenders

Trailer Specs

Dimensions

• Available Lengths: 20', 22', 24', 26'
• Deck Height: 27"
• Deck Width: 102"

Weight Rating

• GAWR: 8,000 Lbs
• GVWR: 17,900 Lbs

Finish

Paint Type: Powdercoat

Prep: Steel Grit Blasted

Colors

• Military Green
• Desert Tan
• Flame Orange
• Midnight Black
• Spectra Yellow
• Blue Horizon
• Lime Green
• Ash Grey
• True Red
• Pearl White
• Cloud Grey
• Navy Blue

Warranty

• Axle Warranty: 5 Year Spring Axle Warranty
• Trailer Warranty: 3 Year Frame / 1 Year Parts Warranty

Tongue

• Type: Neckboss 10" Engineered I-Beam
• Length: 94" Long (From Behind Riser)
• Height: 70" High (From Underneath Neck)
• Spare: Weld On Spare Tire Mount
• Storage Behind Neck: Storage Box / Winch Ready

Coupler

• Standard Coupler: Adjustable 2-5/16" Gn Coupler (30,000 Lbs)

Jacks

• Front Jack: 2 Side Wind Spring Loaded Drop Jack Legs (12,000 Lbs)

Toolbox

• Toolbox: Mega Lockable Toolbox

Safety

• Safety Chains: 3/8" Grade 70 Safety Chain W/Clevis Hook (2 Each)

Chassis

Frame

• Main Frame: 8" I-Beam (15 Lbs/Ft)

Deck

Bed

• Rear Of Deck: 2' Dovetail
• Deck Frame: 3/16" Diamond Plate
• Flooring: Pine Lumber Floor
• Crossmembers: 3" Channel (3.50 Lbs/Ft) 16" Spacing
• Deck Height: 25"
• Deck Width: 102"
• Width Between Fenders: 83"
• Weld On D-Rings: 2 - D-Rings In Between Fenders
• Bolt On Swivel D-Rings: 2 - Flush Mount Galvanized Swivel D-Rings Front Of Trailer
• Tie Down Slots: Slots For Latch On Tie Down Fittings Front End Of Deck

Sides

• Rub Rail: 2" X 3/8" Rub Rail
• Stake Pockets: 1,5/8" X 3,5/8" (Id) Stake Pockets (Spaced At 24")
• Spools: 2" X 10ga. Pipe Spools (Spaced At 24")
• Fenders: 3/16" Diamond Plate Drive Over Fenders

Rear

• Ramps: Ramp Pockets W/ 5' 6" Long Heavy Duty Slide In 4" Channel Ramps (7,000 Lbs Wheel Rating Each Only Over Area Of 12" Or More)

Running Gear

Tires

• Type: Radial Tires
• Size: St235/85r16
• Ply: 14
• Rating: 4,400 Lbs
• Rims: 16" Black Mod Wheels

Suspension

• Axle Type: 8k Electric Brake Auto Adjust Ez Lube Spring Axles
• Bolt Pattern: 8 On 6.5"
• Axle Count: 2
• Suspension Type: Spring
• Axle Warranty: 5 Year Spring Axle Warranty

Electrical And Lighting

Battery And Charging

• Breakaway System: 2382 Brightway Group Electric Breakaway Kit
• Wiring Harness: All-Weather Wiring Harness (7-Way Rv)
• Frame Wiring: Double Insulated Wiring Harness

Lighting

• Lights: Dot Approved Tecniq Led Lights

Safety

• Reflective Tape: 3m Dot Compliant Reflective Tape

Options

Base Model

• EHZ2GN20102-17.9k EHZ GN 20' X 102" 17.9k Tandem Axle Equipment Hauler Trailer
• EHZ2GN22102-17.9k EHZ GN 22' X 102" 17.9k Tandem Axle Equipment Hauler Trailer
• EHZ2GN24102-17.9k EHZ GN 24' X 102" 17.9k Tandem Axle Equipment Hauler Trailer
• EHZ2GN26102-17.9k EHZ BP 26' X 102" 17.9k Tandem Axle Equipment Hauler Trailer

Tongue

• EHZ-104 12k RAM 2 Speed Jacks
• EHZ -106 12k Hydraulic Jacks
• EHZ -302 6" GN Riser Increase
• 503-007 Shocker Hitch 2,5/16" Gn Coupler (30,000 Lbs)

Chassis

• EHZ-607 8" 1-Beam (15 Lbs/Ft) Frame Upgrade

Deck

• EHZ-409 2' Dove Tail W/2-24" X 5'6" Long Heavy Duty [4" Channel] W/ Mesh Covering Stand Up Ramps
• EHZ-408 3 Dove Tail With 2 Mountain Ramps
• EHZ-402 12 Crossmember Spacing
• 506-005 Full Deck Blackwood "Classic" Rubber Infused Lumber
• EHZ-420 12ga. Diamond Plate Steel Deck
• 508-001 4 Additional D-Rings Welded Across Deck (1/2"-4,000 Lbs)
• 508-002 6 Additional D-Rings Welded Across Deck [1/2"-4,000 Lbs]
• 508-003 8 Additional D-Rings Welded Across Deck [1/2"-4,000 Lbs]
• 508-0094-Latch On Tie Down Fittings 2" O-Ring (4,000 Lbs]
• 508-010 6-Latch On Tie Down Fittings 2" O-Ring (4,000 Lbs)
• 508-011 B-Latch On Tie Down Fittings 2" O-Ring (4,000 Lbs)
• 508-012 10-Latch On Tie Down Fittings 2" O-Ring (4,000 Lbs)
• 508-013 12-Latch On Tie Down Fittings 2 O-Ring (4,000 Lbs)
• 511-003 Rear Stabilizer Swivel Jacks (Slide In Ramps Option Only)
• EHZ-219 Storage-Box Integrated In Deck In Front Of Trailer (37"L X 35"W X 10"D)

Lift System

• 509-016 Tuff Wireless 2 Button Remote [Hydraulic Jacks)
• 509-018 Tuff Wireless 4 Button Remote (Hydraulic Jacks-Winch)
• Winch Add One Installed In Storage Box On Neck)
• 504-012 13.5k Steel Cable Winchmax Winch
• 504-013 13.5k Synthetic Rope Winchmax Winch
• 504-014 17.5k Steel Cable Winchmax Winch
• 504-015 17.5k Synthetic Rope Winchmax Winch

Running Gear
Tire Upgrade Options

• 501-002 4-St235/85r16 14 Ply Tires Singles (4,400 Lbs)

Aluminium Wheels Options

• 501-0034-Aluminum Rims W/St235/80r16 10 Ply Tires (3,520 Lbs)
• 501-004 4-Aluminum Rims W/ St235/85r16 14 Ply Tires (4,400 Lbs)

Spare Tire Options

• 501-103 St235/80r16 10 Ply Tire Single (3,520 Lbs)
• 501-104 St235/85r16 14 Ply Tire Single (4,400 Lbs)
• 501-105 Aluminum Rims W/ St235/80r16 10 Ply Tire (3,520 Lbs]
• 501-106 Aluminum Rims W/ St235/85r16 14 Ply Tire [4,400 Lbs]

Electrical And Lighting

• 505-001 10 Watt Solar Panel
• EHZ-305 2-Cargo Lights Mounted On Riser

Finish

• EHZ-815 20ft & Up Zinc Primer Undercoat
• EHZ-802 Fenders Painted Black
• EHZ-817 Ramps Painted Black
